N1800 NH087

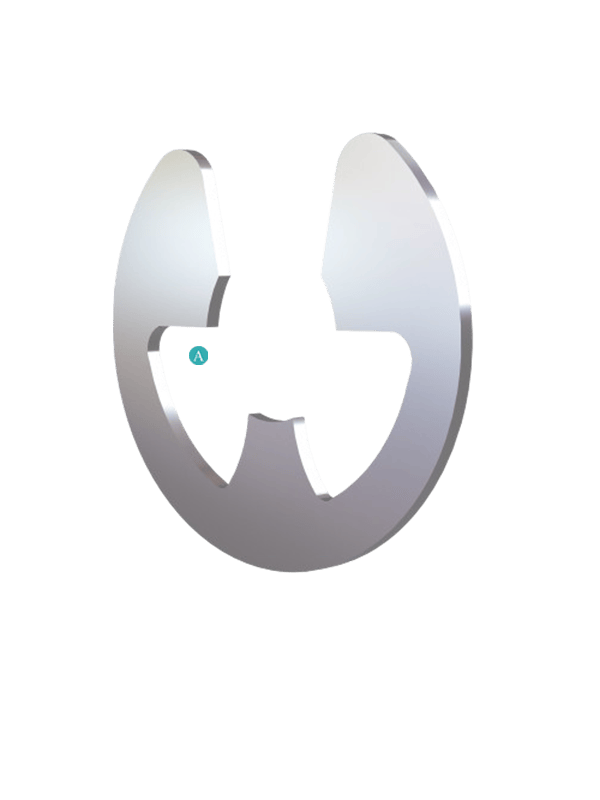

N1800 NH087 · Product image

Image may differ from product. See technical specifications for details.

N1800 NH087 · Technical drawing

Brand
QIBR
Alternative brand
CIRTEQ
Measurement system
Imperial
Groove diameter
0.789 inch
Groove diameter tolerance
+0.003 to -0.003 inch
Total width
0.042 inch
Width tolerance1
+0.002 to -0.002 inch
Shaft diameter1
0.875 inch
Weight
0.002 lbs
Outer diameter1
/
Inner diameter
/
Inner diameter tolerance
/
Size1
1.01 inch
Shaft diameter2
/
Groove width
0.046 inch
Width tolerance2
/
Outer diameter2
0.991 inch
Groove depth
/
Width
/
Size2
0.789 inch
Material
Carbon spring steel
Applications
For retaining inner pin bushes in articulated joints ; In sprocket chains
Clip thrust load
2410 lbf
Groove thrust load
1060 lb/ft
Peripheral speed
/
Load bearing capacity of the groove
/
Basic load rating
/

Inquiry for N1800 NH087

Tell us your operating requirements and required quantity.

Description

Parts in bearing mechanical equipment

Application : All branches of industry and machine, instrument and vehicle construction.

Subseries :

Rings For Radial Assembly

Specifications :

Groove Diameter (d2) : 1.20mm-24.0mm

Weight  : 0.009-8.550(kg/1000)

N1800 NH087 Ring Product Features and Advantages

Easy Installation: Provides greater load-bearing capacity in both radial and axial directions, effectively extending the service life of the bearing.

Reliable Fixing Performance: Effectively secures and connects different components, preventing loosening or detachment under vibration or impact conditions.

Strong Adaptability: Suitable for components of various shapes and sizes, allowing for adjustments and selections based on different application needs.

Cost-Effectiveness: Relatively low production costs, strong durability, reduced replacement frequency, and lower overall maintenance and operating costs.

High Strength: Capable of withstanding significant loads, with good tensile strength and compressive capacity.

Application: Widely used in the automotive, aerospace, machinery, construction, and other industries.

QIBR - N1800 NH087 Ring Product Optimization

High-Performance Materials: Materials for snap rings can be replaced based on different working conditions, such as stainless steel, carbon steel, and plastic.

Surface Heat Treatment: Heat treatments such as coating, oxidation, and polishing are used to enhance wear resistance, corrosion resistance, and aesthetics.

More customization: QIBR can customize snap ring sizes and materials according to customer drawings and operational requirements.

QIBR - N1800 NH087 Ring Product quality control

Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearings, with maximum precision reaching 0.001mm.

Hardness measurement: The hardness of the bearing surface is measured using a hardness tester, with a precision of ±0.5HRC.

Metallographic analysis: Professional metallographic microscopes are used to analyze the internal metallographic structure of metals.

Raw material control: Steel and parts are purchased from suppliers certified by ISO 14001 to ensure product stability and promote sustainable development.
