Rings For Radial Assembly - QIBR Bearing Co., Ltd.

Parts in bearing mechanical equipment

Application : All branches of industry and machine, instrument and vehicle construction.

Subseries :

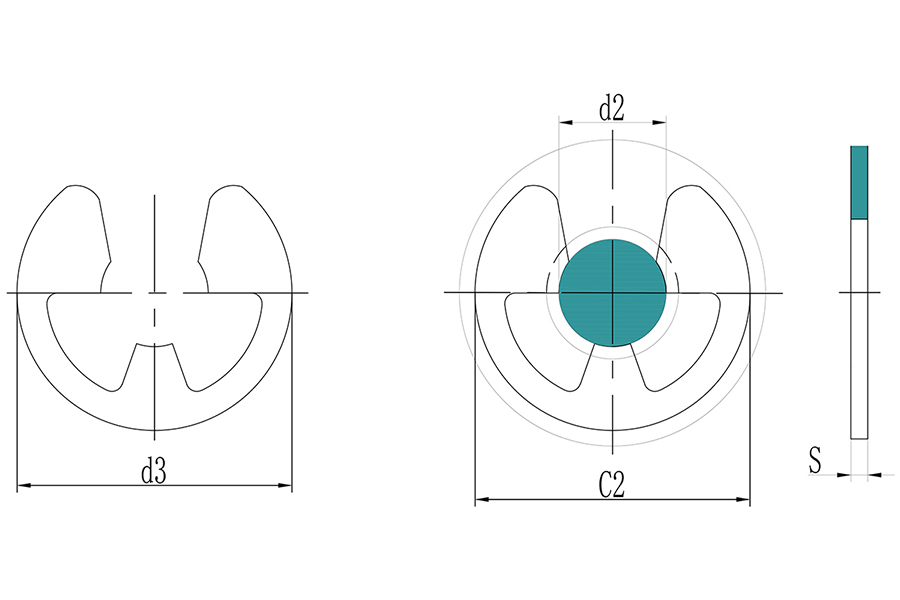

Rings For Radial Assembly

Specifications :

Groove Diameter (d2) : 1.20mm-24.0mm

Weight : 0.009-8.550(kg/1000)

QIBR Model Selection

QIBR Model Selection
No.	Product model	Total width	Weight	Shaft diameter2	Width	Inner diameter
1	DIN6799 D1500 RA1.2	0.3 mm	0.009 g	1.5 mm	0.6 mm	1.01 mm
2	DIN6799 D1500 RA1.5	0.4 mm	0.021 g	2 mm	0.8 mm	1.28 mm
3	DIN6799 D1500 RA1.9	0.5 mm	0.04 g	2.5 mm	1 mm	1.61 mm
4	DIN6799 D1500 RA10.0	1.2 mm	1.120 g	12 mm	2 mm	8.32 mm
5	DIN6799 D1500 RA12.0	1.3 mm	1.77 g	15 mm	2.5 mm	10.45 mm
6	DIN6799 D1500 RA15.0	1.5 mm	3.37 g	20 mm	3 mm	12.61 mm
7	DIN6799 D1500 RA19.0	1.75 mm	6.42 g	25 mm	3.5 mm	15.92 mm
8	DIN6799 D1500 RA2.3	0.6 mm	0.069 g	3 mm	1 mm	1.94 mm
9	DIN6799 D1500 RA24.0	2 mm	8.55 g	30 mm	4 mm	21.88 mm
10	DIN6799 D1500 RA3.2	0.6 mm	0.088 g	4 mm	1 mm	2.7 mm
11	DIN6799 D1500 RA4.0	0.7 mm	0.158 g	5 mm	1.2 mm	3.34 mm
12	DIN6799 D1500 RA5.0	0.7 mm	0.236 g	7 mm	1.2 mm	4.11 mm
13	DIN6799 D1500 RA6.0	0.7 mm	0.255 g	8 mm	1.2 mm	5.26 mm
14	DIN6799 D1500 RA7.0	0.9 mm	0.474 g	9 mm	1.5 mm	5.84 mm
15	DIN6799 D1500 RA8.0	1 mm	0.66 g	10 mm	1.8 mm	6.52 mm
16	DIN6799 D1500 RA9.0	1.1 mm	1 g	11 mm	2 mm	7.63 mm
17	M1800 H10	1 mm	0.26 g	/	1.7 mm	8.75 mm
18	M1800 H11	1 mm	0.29 g	/	1.8 mm	9.65 mm
19	M1800 H12	1 mm	0.32 g	/	1.9 mm	10.55 mm
20	M1800 H13	1 mm	0.36 g	/	2 mm	11.4 mm
21	M1800 H14	1 mm	0.4 g	/	2 mm	12.3 mm
22	M1800 H15	1 mm	0.46 g	/	2.1 mm	13.2 mm
23	M1800 H16	1 mm	0.54 g	/	2.2 mm	14.1 mm
24	M1800 H17	1 mm	0.64 g	/	2.25 mm	14.9 mm
25	M1800 H18	1.2 mm	0.72 g	/	2.3 mm	15.8 mm
