S321

S321 · Product image

Image may differ from product. See technical specifications for details.

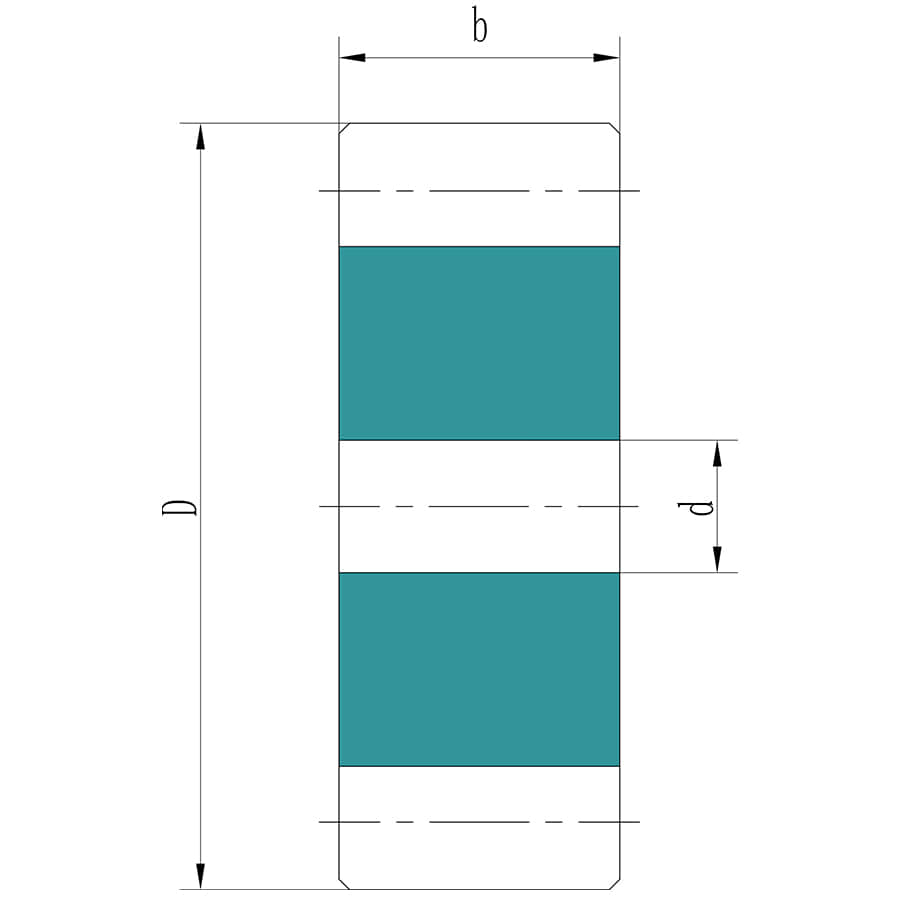

S321 · Technical drawing

Brand
QIBR
Measurement system
Imperial
Pitch
3 inch
Number of teeth
21
Outer diameter
7.666 inch
Gear P.C.D
7.000 inch
Inner diameter
1 7/16~3 7/8 inch
Tooth width
2 inch
Size
/
Width
/
Material
Steel
Weight
30.7 lbs
Pressure angle
14.5°

Inquiry for S321

Tell us your operating requirements and required quantity.

Description

QIBR - S321 Gears Advantages and Applications

S321 Gears, simple structure, high precision, high load-bearing capacity, Pitch is 3 inch, Outer diameter is 7.666 inch, Weight is 30.7 lbs. It is suitable for the transmission system of packaging machines, printing machines and medical equipment, etc. It is the most widely used in working conditions with high precision requirements.

QIBR - S321 Gears Characteristics

S321 Gears, high reliability, long life, easy installation and maintenance. S321 Gears, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high precision requirements.
