S316

S316 · Product image

Image may differ from product. See technical specifications for details.

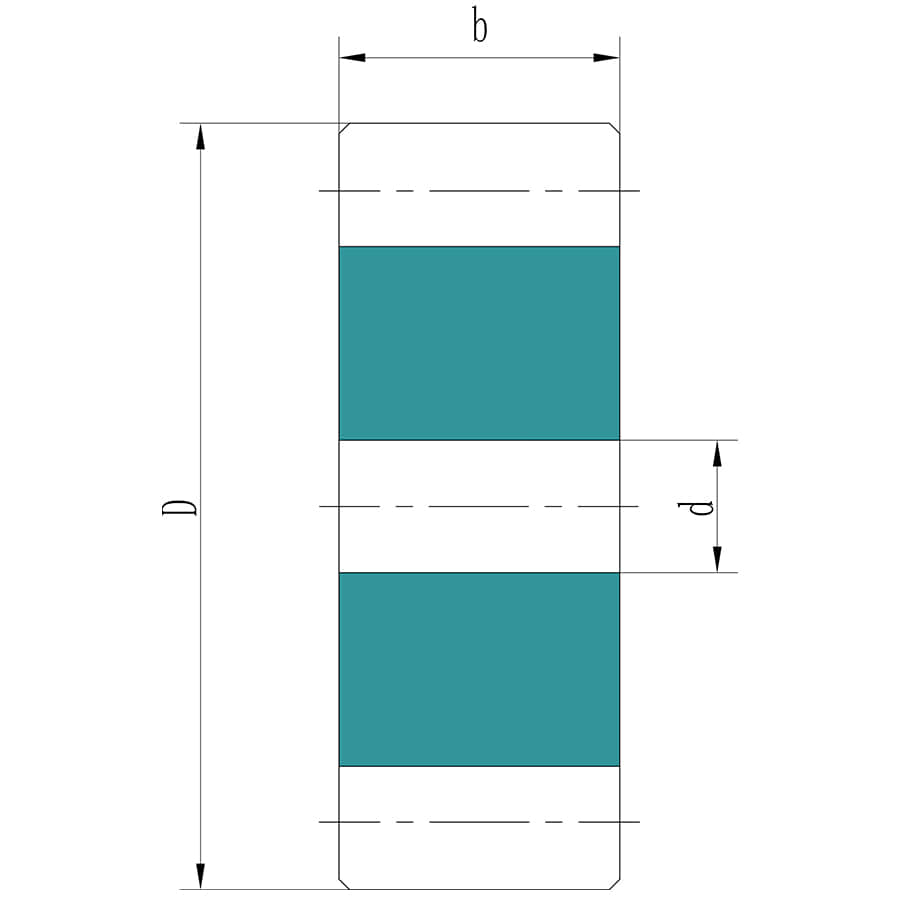

S316 · Technical drawing

Brand
QIBR
Measurement system
Imperial
Pitch
3 inch
Number of teeth
16
Outer diameter
6.000 inch
Gear P.C.D
5.333 inch
Inner diameter
1 5/16~2 13/16 inch
Tooth width
2 inch
Size
/
Width
/
Material
Steel
Weight
17.0 lbs
Pressure angle
14.5°

Inquiry for S316

Tell us your operating requirements and required quantity.

Description

QIBR - S316 Gears Advantages and Applications

S316 Gears, simple structure, high precision, high load-bearing capacity, Pitch is 3 inch, Outer diameter is 6.000 inch, Weight is 17.0 lbs. It is suitable for the transmission system of packaging machines, printing machines and medical equipment, etc. It is the most widely used in working conditions with high precision requirements.

QIBR - S316 Gears Characteristics

S316 Gears, high reliability, long life, easy installation and maintenance. S316 Gears, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high precision requirements.
