S315

S315 · Product image

Image may differ from product. See technical specifications for details.

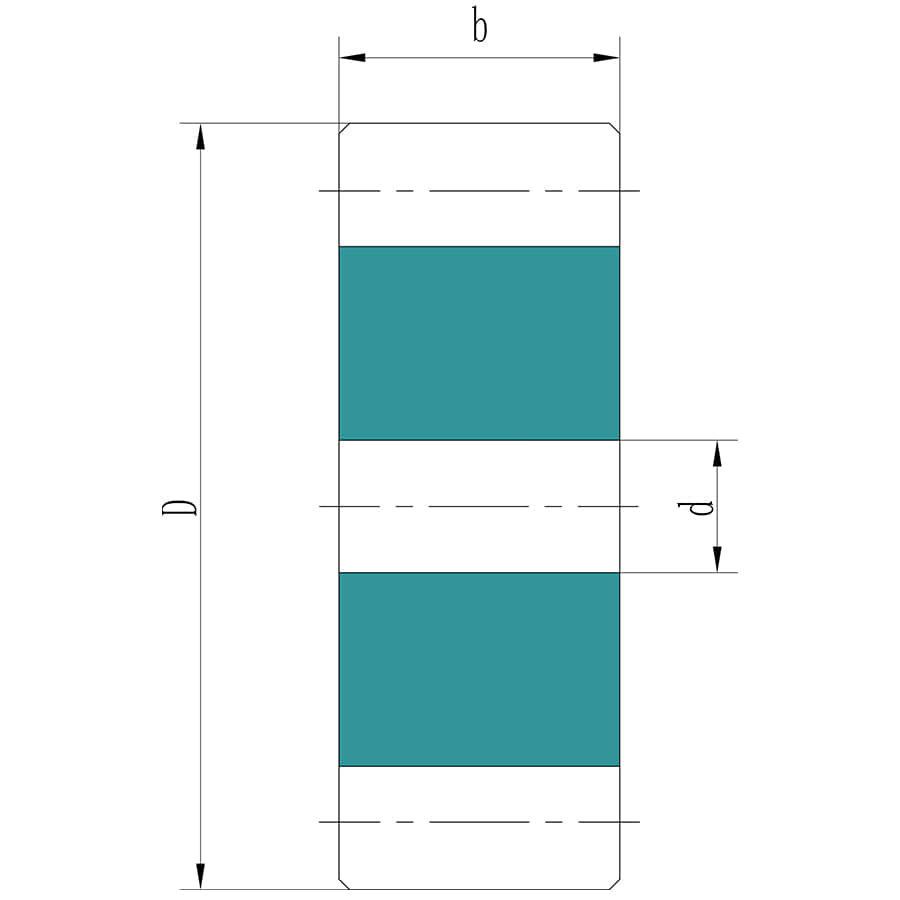

S315 · Technical drawing

Brand
QIBR
Measurement system
Imperial
Pitch
3 inch
Number of teeth
15
Outer diameter
5.666 inch
Gear P.C.D
5.000 inch
Inner diameter
1 5/16~2 3/4 inch
Tooth width
2 inch
Size
/
Width
/
Material
Steel
Weight
14.8 lbs
Pressure angle
14.5°

Inquiry for S315

Tell us your operating requirements and required quantity.

Description

QIBR - S315 Gears Advantages and Applications

S315 Gears, simple structure, high precision, high load-bearing capacity, Pitch is 3 inch, Outer diameter is 5.666 inch, Weight is 14.8 lbs. It is suitable for the transmission system of packaging machines, printing machines and medical equipment, etc. It is the most widely used in working conditions with high precision requirements.

QIBR - S315 Gears Characteristics

S315 Gears, high reliability, long life, easy installation and maintenance. S315 Gears, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high precision requirements.
