S314

S314 · Product image

Image may differ from product. See technical specifications for details.

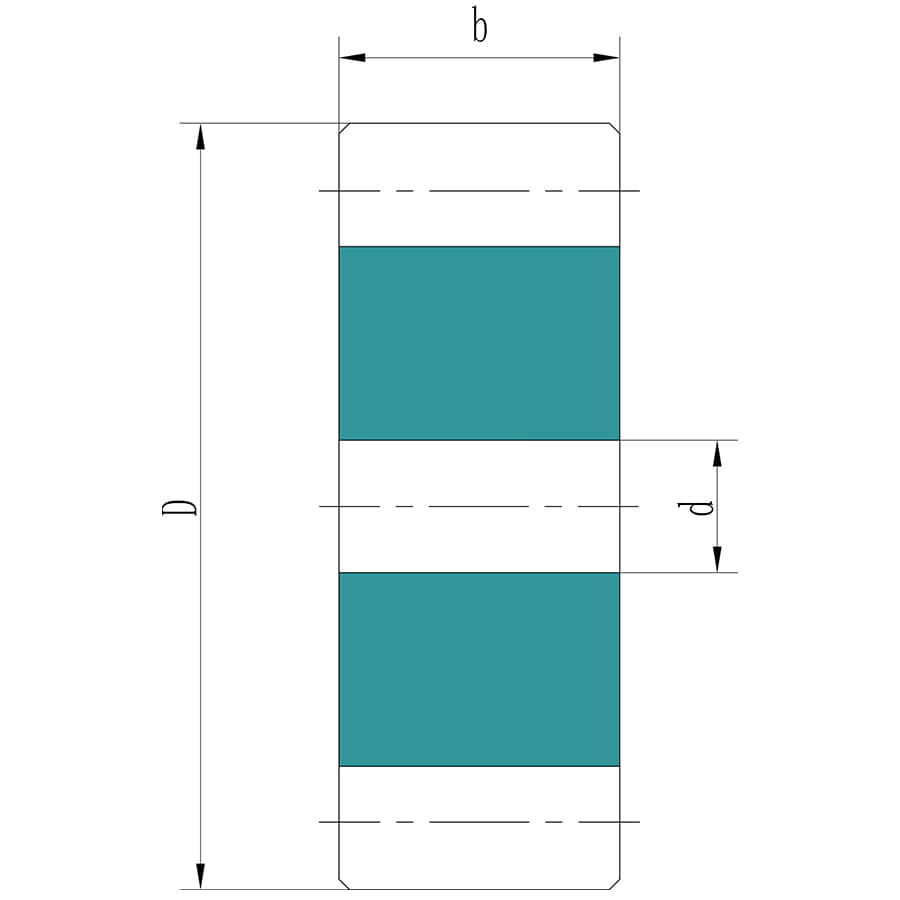

S314 · Technical drawing

Brand
QIBR
Measurement system
Imperial
Pitch
3 inch
Number of teeth
14
Outer diameter
5.333 inch
Gear P.C.D
4.667 inch
Inner diameter
1 5/16~2 3/8 inch
Tooth width
2 inch
Size
/
Width
/
Material
Steel
Weight
12.8 lbs
Pressure angle
14.5°

Inquiry for S314

Tell us your operating requirements and required quantity.

Description

QIBR - S314 Gears Advantages and Applications

S314 Gears, simple structure, high precision, high load-bearing capacity, Pitch is 3 inch, Outer diameter is 5.333 inch, Weight is 12.8 lbs. It is suitable for the transmission system of packaging machines, printing machines and medical equipment, etc. It is the most widely used in working conditions with high precision requirements.

QIBR - S314 Gears Characteristics

S314 Gears, high reliability, long life, easy installation and maintenance. S314 Gears, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high precision requirements.
