03X B 480M

03X B 480M · Product image

Image may differ from product. See technical specifications for details.

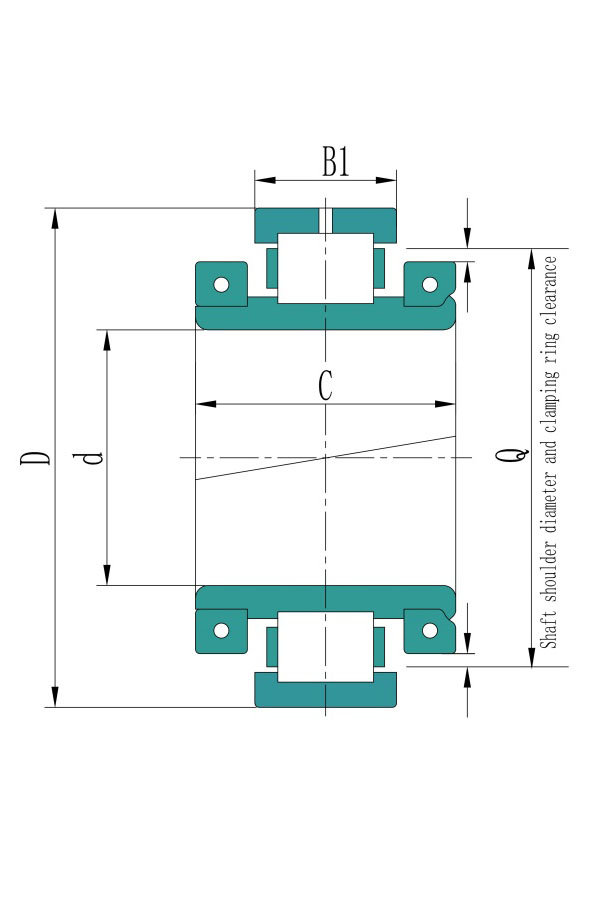

03X B 480M · Technical drawing

Brand
QIBR
Alternative brand
Cooper
Rolling element type
Roller
Measurement system
Metric
Outer diameter
800.10 mm
Inner diameter
480 mm
Total width
300.0 mm
Width of outer ring
187.4 mm
Permissible axial displacement
26～56 mm
Basic dynamic load rating (radial)
3771 kN
Basic static load rating (radial)
6186 kN
Basic dynamic load rating (axial)
309.0 kN
Limiting speed
340 rpm
Weight
630.0 kg
Load direction
Radial
Ring material
52100
Rolling element material
52100
Number of rolling element rows
Single row
Bearing type
Split cylindrical roller bearings
Lubrication
Oil
Temperature
-30 ℃ to +110 ℃
Seal type
Open type

Inquiry for 03X B 480M

Tell us your operating requirements and required quantity.

Description

Split Roller Bearings are engineered for industries where equipment downtime is critical. Our split cylindrical and spherical roller bearings feature a two-piece design for easy installation and maintenance—without dismantling shafts or adjacent components.

QIBR - 03X B 480M Split Roller Bearings Advantages and Applications

QIBR - 03X B 480M Split Roller Bearings Characteristics
