03 B 380M

03 B 380M · Product image

Image may differ from product. See technical specifications for details.

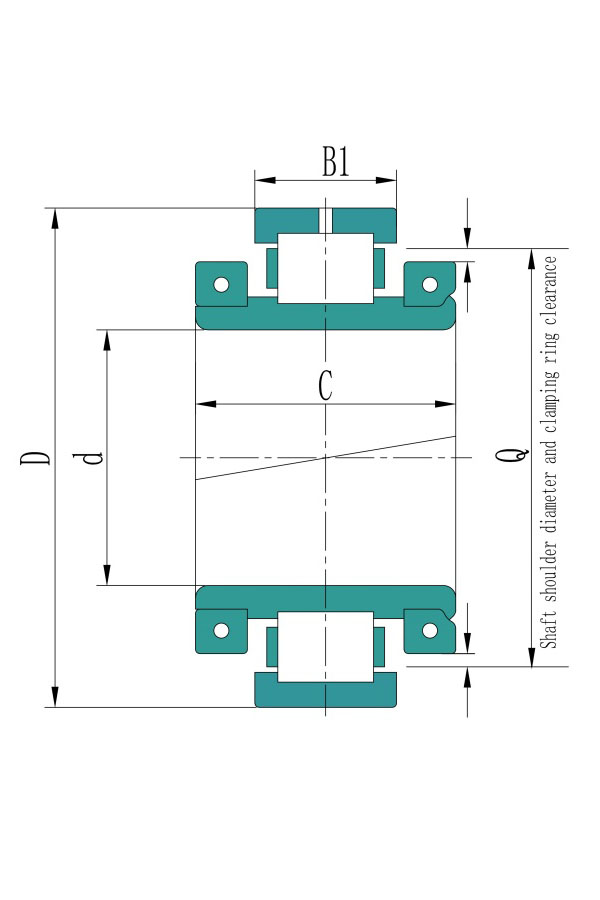

03 B 380M · Technical drawing

Brand
QIBR
Alternative brand
Cooper
Rolling element type
Roller
Measurement system
Metric
Outer diameter
685.80 mm
Inner diameter
380 mm
Total width
292.0 mm
Width of outer ring
166.7 mm
Permissible axial displacement
23～50 mm
Basic dynamic load rating (radial)
3019 kN
Basic static load rating (radial)
4800 kN
Basic dynamic load rating (axial)
251.0 kN
Limiting speed
420 rpm
Weight
431.0 kg
Load direction
Radial
Ring material
52100
Rolling element material
52100
Number of rolling element rows
Single row
Bearing type
Split cylindrical roller bearings
Lubrication
Oil
Temperature
-30 ℃ to +110 ℃
Seal type
Open type

Inquiry for 03 B 380M

Tell us your operating requirements and required quantity.

Description

Split Roller Bearings are engineered for industries where equipment downtime is critical. Our split cylindrical and spherical roller bearings feature a two-piece design for easy installation and maintenance—without dismantling shafts or adjacent components.

QIBR - 03 B 380M Split Roller Bearings Advantages and Applications

QIBR - 03 B 380M Split Roller Bearings Characteristics
