01 B 440M

01 B 440M · Product image

Image may differ from product. See technical specifications for details.

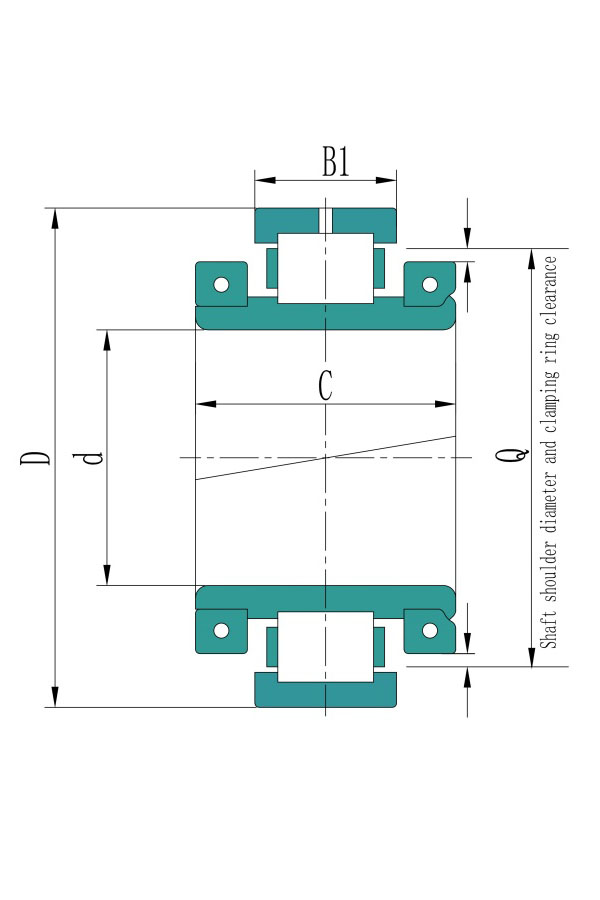

01 B 440M · Technical drawing

Brand
QIBR
Alternative brand
Cooper
Rolling element type
Roller
Measurement system
Metric
Outer diameter
596.90 mm
Inner diameter
440 mm
Total width
140.0 mm
Width of outer ring
76.2 mm
Permissible axial displacement
10～22 mm
Basic dynamic load rating (radial)
1129 kN
Basic static load rating (radial)
2366 kN
Basic dynamic load rating (axial)
127.0 kN
Limiting speed
410 rpm
Weight
114.0 kg
Load direction
Radial
Ring material
52100
Rolling element material
52100
Number of rolling element rows
Single row
Bearing type
Split cylindrical roller bearings
Lubrication
Oil
Temperature
-30 ℃ to +110 ℃
Seal type
Open type

Inquiry for 01 B 440M

Tell us your operating requirements and required quantity.

Description

Split Roller Bearings are engineered for industries where equipment downtime is critical. Our split cylindrical and spherical roller bearings feature a two-piece design for easy installation and maintenance—without dismantling shafts or adjacent components.

QIBR - 01 B 440M Split Roller Bearings Advantages and Applications

QIBR - 01 B 440M Split Roller Bearings Characteristics
