03E B 2200

03E B 2200 · Product image

Image may differ from product. See technical specifications for details.

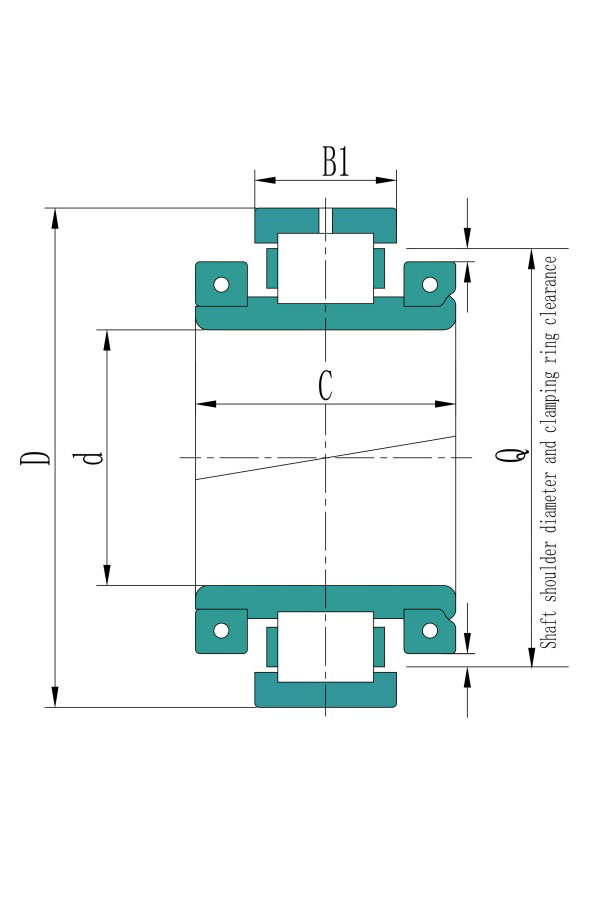

03E B 2200 · Technical drawing

Brand
QIBR
Alternative brand
Cooper
Rolling element type
Roller
Measurement system
Imperial
Outer diameter
863.60 mm
Inner diameter
22 inch
Total width
310.0 mm
Width of outer ring
196.9 mm
Permissible axial displacement
28～56 mm
Basic dynamic load rating (radial)
4669 kN
Basic static load rating (radial)
8511 kN
Basic dynamic load rating (axial)
383.0 kN
Limiting speed
280 rpm
Weight
635.0 kg
Load direction
Radial
Ring material
52100
Rolling element material
52100
Number of rolling element rows
Single row
Bearing type
Split cylindrical roller bearings
Lubrication
Oil
Temperature
-30 ℃ to +110 ℃
Seal type
Open type

Inquiry for 03E B 2200

Tell us your operating requirements and required quantity.

Description

Split Cylindrical Roller Bearings are engineered for industries where equipment downtime is critical. Our split cylindrical and spherical roller bearings feature a two-piece design for easy installation and maintenance—without dismantling shafts or adjacent components.

QIBR - 03E B 2200 Split Roller Bearings Advantages and Applications

QIBR - 03E B 2200 Split Roller Bearings Characteristics
