02 B 1500

02 B 1500 · Product image

Image may differ from product. See technical specifications for details.

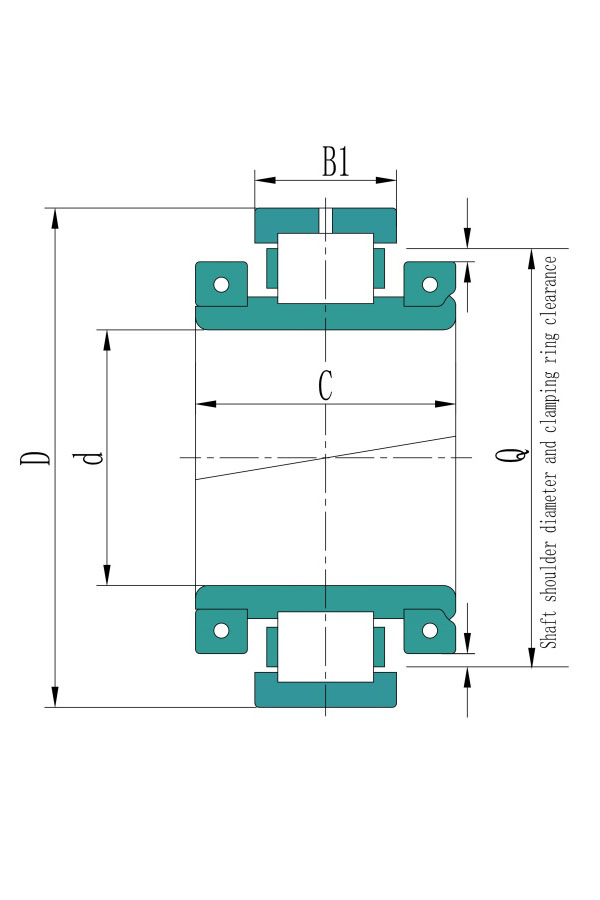

02 B 1500 · Technical drawing

Brand
QIBR
Alternative brand
Cooper
Rolling element type
Roller
Measurement system
Imperial
Outer diameter
584.20 mm
Inner diameter
15 inch
Total width
200.0 mm
Width of outer ring
111.1 mm
Permissible axial displacement
16～30 mm
Basic dynamic load rating (radial)
1862 kN
Basic static load rating (radial)
3254 kN
Basic dynamic load rating (axial)
174.0 kN
Limiting speed
460 rpm
Weight
186.0 kg
Load direction
Radial
Ring material
52100
Rolling element material
52100
Number of rolling element rows
Single row
Bearing type
Split cylindrical roller bearings
Lubrication
Oil
Temperature
-30 ℃ to +110 ℃
Seal type
Open type

Inquiry for 02 B 1500

Tell us your operating requirements and required quantity.

Description

Split Cylindrical Roller Bearings are engineered for industries where equipment downtime is critical. Our split cylindrical and spherical roller bearings feature a two-piece design for easy installation and maintenance—without dismantling shafts or adjacent components.

QIBR - 02 B 1500 Split Roller Bearings Advantages and Applications

QIBR - 02 B 1500 Split Roller Bearings Characteristics
