C 31/1000 KMB+OH 31/1000 HE

C 31/1000 KMB+OH 31/1000 HE · Product image

Image may differ from product. See technical specifications for details.

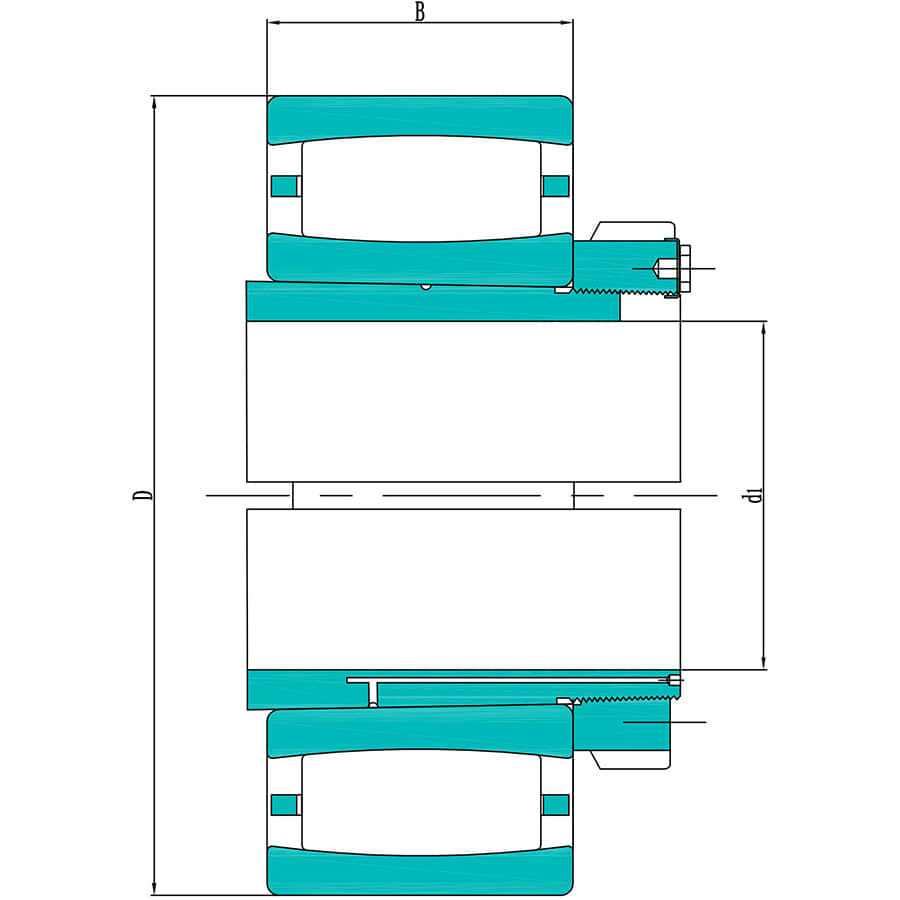

C 31/1000 KMB+OH 31/1000 HE · Technical drawing

Brand
QIBR
Alternative brand
SKF
Rolling element type
Roller
Measurement system
Metric
Precision level
P0(RBEC-1)
Outer diameter
1580 mm
Inner diameter
950 mm
Width of bearing
462 mm
Adapter sleeve
OH 31/1000 HE
Weight
4300 kg
Load direction
Axial and radial
Vibration grade
Z1-Z2
Temperature
-30℃ to +110℃
Seal type
Open type
Ring material
52100
Rolling element material
52100
Basic dynamic load rating
20400 KN
Basic static load rating
45500 KN
Fatigue load limit
2500 KN
Reference speed
220 rpm
Limiting speed
300 rpm

Inquiry for C 31/1000 KMB+OH 31/1000 HE

Tell us your operating requirements and required quantity.

Description

‌The application of single-row spherical roller bearings with adapter sleeves mainly involves working environments that need to withstand heavy loads or vibration loads, especially in the steel, papermaking, shipping, power and other industries. ‌

These bearings are widely used in steelmaking converters, continuous casting machinery, papermaking machinery, lifting machinery, reducers, mining and heavy machinery due to their special structure and performance.

They can withstand radial loads and bidirectional axial loads, have good self-aligning performance, can compensate for coaxiality errors, and are particularly suitable for occasions where installation errors or angle errors caused by shaft deflection occur.

QIBR - C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearing Advantages and Applications

C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearing, low friction, high rigidity, precision manufacturing process, Inner diameter is 950 mm, Outer diameter is 1580 mm, Width of bearing is 462 mm, Weight is 4300 kg, suitable for excavators, compressors, generators and ship propulsion systems, etc., and is the most widely used bearing in working conditions with high precision requirements.

QIBR - C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearing Characteristics

C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearing, high reliability, easy to install and maintain. C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearing, can bear radial load and bidirectional axial load at the same time, suitable for mechanical equipment with high stability requirements.

C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearings Features and Advantages

High load capacity: Capable of withstanding large radial loads and bidirectional axial loads, making it suitable for heavy-duty and impact vibration load environments.

Self-aligning Performance: The outer ring raceway is spherical, effectively compensating for misalignment due to installation errors or shaft deformation.

High-Temperature Performance: Spherical roller bearings have a wide operating temperature range, suitable for applications in high-temperature environments.

Vibration Resistance: Capable of accommodating changes in relative position due to thermal expansion or installation errors, suitable as a free-end bearing.

Application: Widely used in mining, marine, milling applications, coal machinery, wind turbines, paper printing, steel metallurgy, electric vehicles, and large machinery.

QIBR - C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearings Optimization

High-Performance Materials: Different materials such as GCr15, AISI 440C, and 42CrMo can be provided based on customer requirements.

Structural Optimization: The bearing structure and geometry can be optimized according to customer needs to enhance alignment performance and operational stability.

Lubricating Grease: Selection of appropriate lubricants like Mobil SHC 100, SKF LGEP 2, or Shell Gadus S2 V220 based on the bearing's working conditions or customer requirements.

Customization: Bearings can be designed and optimized by QIBR according to customer-specific working conditions and requirements.

QIBR - C 31/1000 KMB+OH 31/1000 HE Spherical Roller Bearings Quality Control

Dimension measurement: Using various high-precision instruments, multiple dimensions of the bearing are measured with an accuracy of up to 0.001mm.

Rotation accuracy: A dial gauge measures minor surface flaws or deviations, with measurement accuracy reaching 0.001mm.

Hardness measurement: Surface hardness is measured using a hardness tester, with an accuracy of ±0.5HRC.

Metallographic analysis: A professional metallographic microscope is used to analyze the internal metallographic structure of the metal.

Form and Position Tolerance: A profilometer is used to measure the geometric shape and relative position of the bearing.

Noise monitoring: Vibration levels during operation are monitored using a vibration meter to obtain noise data.

Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
