131.40.1800

QIBR - 131.40.1800 Slewing Bearing Advantages and Applications

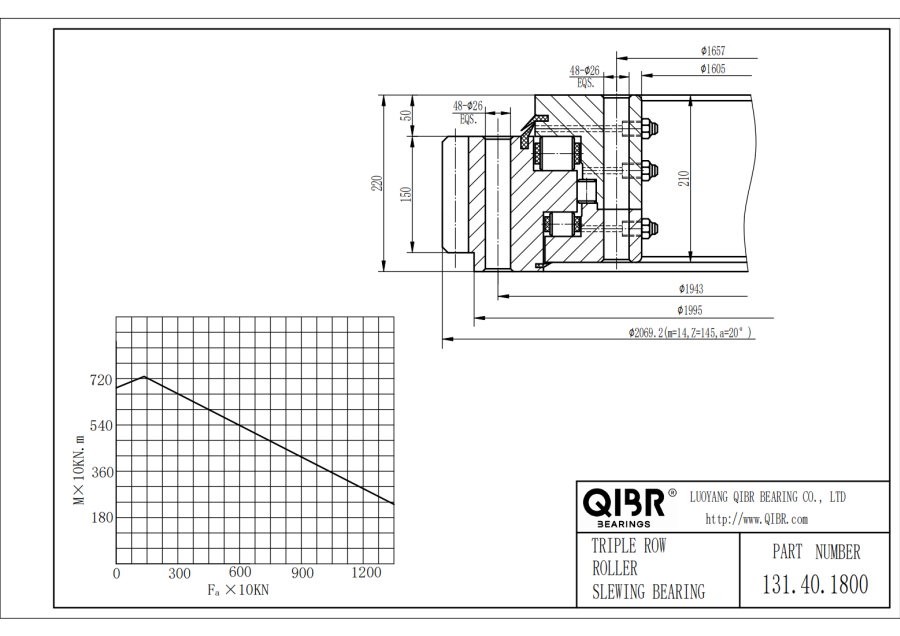

131.40.1800 Slewing Bearing, good transmission performance, strong static load capacity, Inner diameter is 1605 mm，Outer diameter is 1995 mm，Total width is 220 mm, suitable for sand mixers, tower cranes, aerial work vehicles, filling machines, metallurgical cranes and subways, etc., and is the most widely used bearing in working conditions requiring high stability.

QIBR - 131.40.1800 Slewing Bearing Characteristics

131.40.1800 Slewing Bearing, long service life, easy replacement, low maintenance cost. 131.40.1800 Slewing Bearing, can withstand radial load, axial load and overturning moment at the same time, suitable for mechanical equipment that needs to resist impact force.

131.40.1800 Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - 131.40.1800 Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - 131.40.1800 Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.
