RK6-16E1Z

QIBR - RK6-16E1Z Slewing Bearing Advantages and Applications

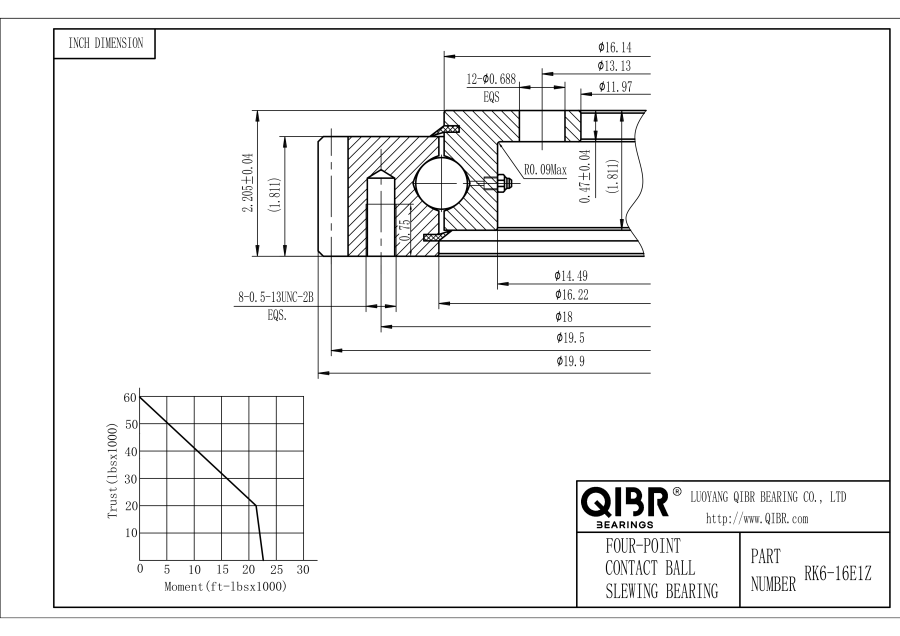

RK6-16E1Z Slewing Bearing, good stability, strong load-bearing capacity, Inner diameter is 14.49 inch，Outer diameter is 19.9 inch，Weight is 72 lbs， suitable for port cranes, flatbed beam transporters, submersible engineering drilling rigs, compaction machines and self-propelled aerial work platforms, etc., is the most widely used bearing in conditions requiring high stability.

QIBR - RK6-16E1Z Slewing Bearing Characteristics

RK6-16E1Z Slewing Bearing, small wear, high cost performance, easy installation. RK6-16E1Z Slewing Bearing, can bear radial load, axial load and overturning moment at the same time, suitable for mechanical equipment with high stability requirements.

RK6-16E1Z Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - RK6-16E1Z Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - RK6-16E1Z Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.
