VSI 25 0855 N

QIBR - VSI 25 0855 N Slewing Bearing Advantages and Applications

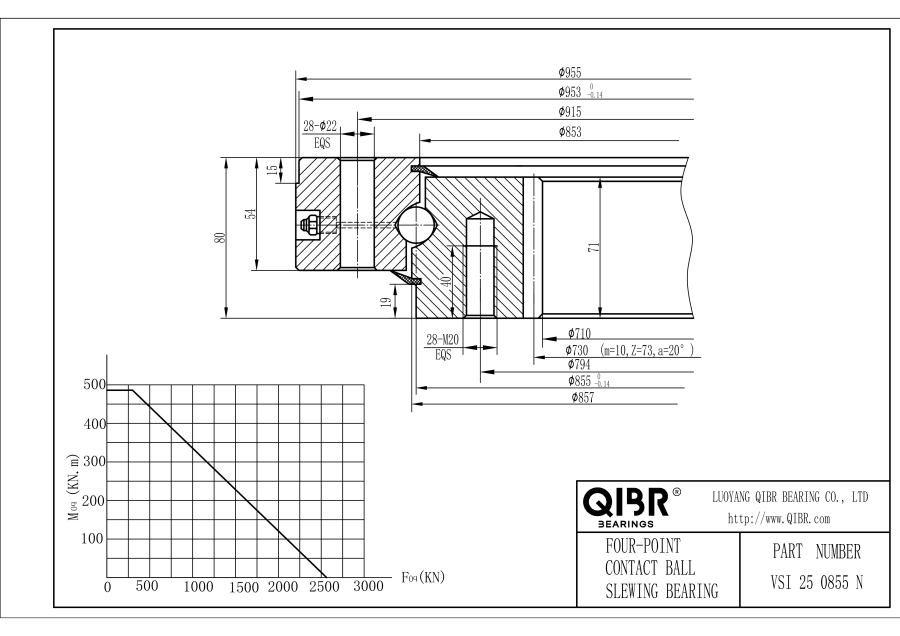

VSI 25 0855 N Slewing Bearing has strong load capacity and high precision.Inner diameter is 710 mm，Outer diameter is 955 mm，Weight is 137 kg. It is suitable for high-speed railways, aircraft, offshore drilling platforms, rotary tables, stackers and reclaimers, etc. It is the most widely used bearing in working conditions requiring high precision.

QIBR - VSI 25 0855 N Slewing Bearing Characteristics

VSI 25 0855 N Slewing Bearing, simple maintenance, low maintenance cost, easy installation. VSI 25 0855 N Slewing Bearing, can bear radial load, axial load and overturning moment at the same time, suitable for mechanical equipment with high load-bearing capacity requirements.

VSI 25 0855 N Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - VSI 25 0855 N Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - VSI 25 0855 N Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.
