KUD02150-045VO15-900-000

QIBR - KUD02150-045VO15-900-000 Slewing Bearing Advantages and Applications

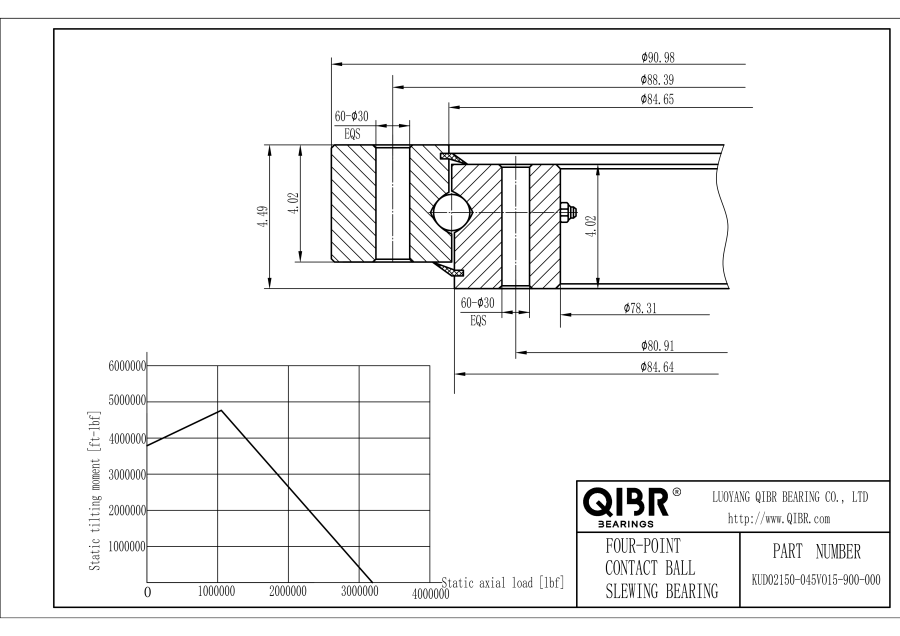

KUD02150-045VO15-900-000 Slewing Bearing, with high positioning accuracy, stable operation, good corrosion resistance, Inner diameter is 78.31 inch，Outer diameter is 90.98 inch，Total width is 4.49 inch，Weight is 1661 lbs, suitable for cranes, park amusement machines, optical instruments, bogies, centrifuges and wind turbines, etc., and is the most widely used bearing in working conditions that require stable operation.

QIBR - KUD02150-045VO15-900-000 Slewing Bearing Characteristics

KUD02150-045VO15-900-000 Slewing Bearing, high cost performance and large space utilization. KUD02150-045VO15-900-000 Slewing Bearing, can bear radial load, axial load and overturning moment at the same time, suitable for mechanical equipment requiring high stability.

KUD02150-045VO15-900-000 Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - KUD02150-045VO15-900-000 Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - KUD02150-045VO15-900-000 Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.
