RKS.160.14.0944

QIBR - RKS.160.14.0944 Slewing Bearing Advantages and Applications

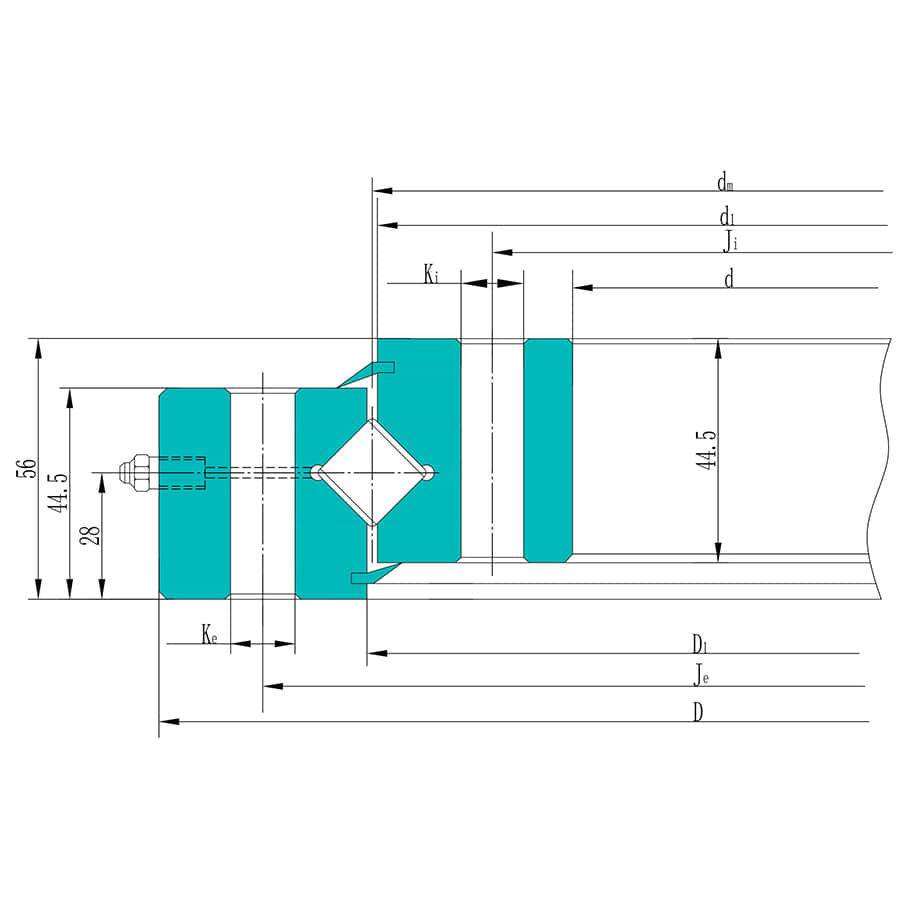

RKS.160.14.0944 Slewing Bearing has high stability, strong load-bearing capacity and smooth operation.Inner diameter is 874 mm，Outer diameter is 1016 mm，Weight is 67 kg. It is suitable for scrapers, manipulators, welding robots, wire cutting machines and quenching machines, etc. and is the most widely used bearing in working conditions with high stability requirements.

QIBR - RKS.160.14.0944 Slewing Bearing Characteristics

RKS.160.14.0944 Slewing Bearing, strong fatigue resistance, long maintenance cycle, low cost. RKS.160.14.0944 Slewing Bearing, can bear the combined effects of radial load, axial load and overturning moment at the same time, suitable for mechanical equipment that needs to work in a stable state.

RKS.160.14.0944 Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - RKS.160.14.0944 Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - RKS.160.14.0944 Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.
