114.40.2240

QIBR - 114.40.2240 Slewing Bearing Advantages and Applications

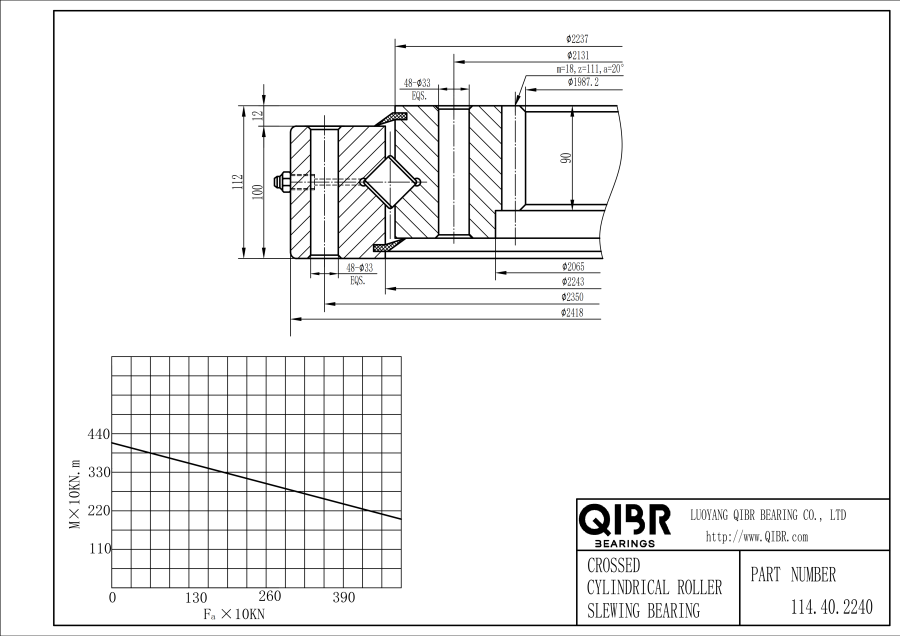

114.40.2240 Slewing Bearing has high manufacturing precision and low friction coefficient. Inner diameter is 2065 mm，Outer diameter is 2418 mm，Total width is 112 mm. It is suitable for rotary drilling rigs, dredgers, military equipment, sand mixers, and filling machines, etc. It is the most widely used bearing in working conditions with high precision requirements.

QIBR - 114.40.2240 Slewing Bearing Characteristics

114.40.2240 Slewing Bearing, high cost performance, simple design, small assembly clearance, easy maintenance. 114.40.2240 Slewing Bearing, can simultaneously withstand certain axial force, radial force and overturning moment, suitable for mechanical equipment that needs to work under high temperature and high pressure.

114.40.2240 Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - 114.40.2240 Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - 114.40.2240 Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.
