Shim And Support Washers

Image may differ from product. See technical specification for details.

Search for the bearing model you need

Shim And Support Washers

Filters

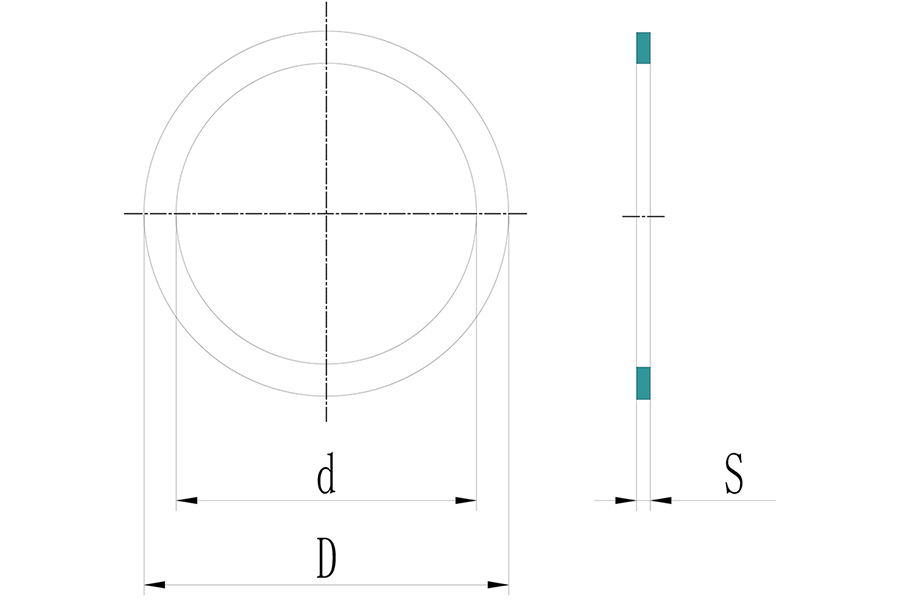

NO. Product Product Number Inner diameter (d) Outer diameter (D) Thickness (T) Weight
1 DIN988 DIN988 PS3×6×0.1 3 mm 6 mm 0.1 mm 0.016 g
2 DIN988 DIN988 PS3×6×0.15 3 mm 6 mm 0.15 mm 0.024 g
3 DIN988 DIN988 PS3×6×0.2 3 mm 6 mm 0.2 mm 0.032 g
4 DIN988 DIN988 PS3×6×0.25 3 mm 6 mm 0.25 mm 0.040 g
5 DIN988 DIN988 PS3×6×0.3 3 mm 6 mm 0.3 mm 0.050 g
6 DIN988 DIN988 PS3×6×0.5 3 mm 6 mm 0.5 mm 0.083 g
7 DIN988 DIN988 PS3×6×1.0 3 mm 6 mm 1.0 mm 0.165 g
8 DIN988 DIN988 PS4×8×0.1 4 mm 8 mm 0.1 mm 0.030 g
9 DIN988 DIN988 PS4×8×0.15 4 mm 8 mm 0.15 mm 0.045 g
10 DIN988 DIN988 PS4×8×0.2 4 mm 8 mm 0.2 mm 0.060 g
11 DIN988 DIN988 PS4×8×0.25 4 mm 8 mm 0.25 mm 0.075 g
12 DIN988 DIN988 PS4×8×0.3 4 mm 8 mm 0.3 mm 0.089 g
13 DIN988 DIN988 PS4×8×0.5 4 mm 8 mm 0.5 mm 0.148 g
14 DIN988 DIN988 PS4×8×1.0 4 mm 8 mm 1.0 mm 0.296 g
15 DIN988 DIN988 PS5×10×0.1 5 mm 10 mm 0.1 mm 0.046 g
16 DIN988 DIN988 PS5×10×0.15 5 mm 10 mm 0.15 mm 0.069 g
17 DIN988 DIN988 PS5×10×0.2 5 mm 10 mm 0.2 mm 0.092 g
18 DIN988 DIN988 PS5×10×0.25 5 mm 10 mm 0.25 mm 0.115 g
19 DIN988 DIN988 PS5×10×0.3 5 mm 10 mm 0.3 mm 0.139 g
20 DIN988 DIN988 PS5×10×0.5 5 mm 10 mm 0.5 mm 0.231 g
21 DIN988 DIN988 PS5×10×1.0 5 mm 10 mm 1.0 mm 0.462 g
22 DIN988 DIN988 PS6×12×0.1 6 mm 12 mm 0.1 mm 0.067 g
23 DIN988 DIN988 PS6×12×0.15 6 mm 12 mm 0.15 mm 0.101 g
24 DIN988 DIN988 PS6×12×0.2 6 mm 12 mm 0.2 mm 0.134 g
25 DIN988 DIN988 PS6×12×0.25 6 mm 12 mm 0.25 mm 0.168 g
26 DIN988 DIN988 PS6×12×0.3 6 mm 12 mm 0.3 mm 0.200 g
27 DIN988 DIN988 PS6×12×0.5 6 mm 12 mm 0.5 mm 0.333 g
28 DIN988 DIN988 PS6×12×1.0 6 mm 12 mm 1.0 mm 0.666 g
29 DIN988 DIN988 PS7×13×0.1 7 mm 13 mm 0.1 mm 0.074 g
30 DIN988 DIN988 PS7×13×0.15 7 mm 13 mm 0.15 mm 0.111 g
31 DIN988 DIN988 PS7×13×0.2 7 mm 13 mm 0.2 mm 0.148 g
32 DIN988 DIN988 PS7×13×0.25 7 mm 13 mm 0.25 mm 0.185 g
33 DIN988 DIN988 PS7×13×0.3 7 mm 13 mm 0.30 mm 0.221 g
34 DIN988 DIN988 PS7×13×0.5 7 mm 13 mm 0.5 mm 0.369 g
35 DIN988 DIN988 PS7×13×1.0 7 mm 13 mm 1.0 mm 0.738 g
36 DIN988 DIN988 PS8×14×0.1 8 mm 14 mm 0.1 mm 0.082 g
37 DIN988 DIN988 PS8×14×0.15 8 mm 14 mm 0.15 mm 0.123 g
38 DIN988 DIN988 PS8×14×0.2 8 mm 14 mm 0.2 mm 0.164 g
39 DIN988 DIN988 PS8×14×0.25 8 mm 14 mm 0.25 mm 0.205 g
40 DIN988 DIN988 PS8×14×0.3 8 mm 14 mm 0.3 mm 0.245 g
41 DIN988 DIN988 PS8×14×0.5 8 mm 14 mm 0.5 mm 0.408 g
42 DIN988 DIN988 PS8×14×1.0 8 mm 14 mm 1.0 mm 0.815 g
43 DIN988 DIN988 PS9×15×0.1 9 mm 15 mm 0.1 mm 0.089 g
44 DIN988 DIN988 PS9×15×0.15 9 mm 15 mm 0.15 mm 0.134 g
45 DIN988 DIN988 PS9×15×0.2 9 mm 15 mm 0.2 mm 0.178 g
46 DIN988 DIN988 PS9×15×0.25 9 mm 15 mm 0.25 mm 0.223 g
47 DIN988 DIN988 PS9×15×0.3 9 mm 15 mm 0.3 mm 0.270 g
48 DIN988 DIN988 PS9×15×0.5 9 mm 15 mm 0.5 mm 0.445 g
49 DIN988 DIN988 PS9×15×1.0 9 mm 15 mm 1.0 mm 0.891 g
50 DIN988 DIN988 PS10×16×0.1 10 mm 16 mm 0.1 mm 0.096 g
51 DIN988 DIN988 PS10×16×0.15 10 mm 16 mm 0.15 mm 0.144 g
52 DIN988 DIN988 PS10×16×0.2 10 mm 16 mm 0.2 mm 0.192 g
53 DIN988 DIN988 PS10×16×0.25 10 mm 16 mm 0.25 mm 0.240 g
54 DIN988 DIN988 PS10×16×0.3 10 mm 16 mm 0.3 mm 0.290 g
55 DIN988 DIN988 PS10×16×0.5 10 mm 16 mm 0.5 mm 0.481 g
56 DIN988 DIN988 PS10×16×1.0 10 mm 16 mm 1.0 mm 0.963 g
57 DIN988 DIN988 PS11×17×0.1 11 mm 17 mm 0.1 mm 0.103 g
58 DIN988 DIN988 PS11×17×0.15 11 mm 17 mm 0.15 mm 0.155 g
59 DIN988 DIN988 PS11×17×0.2 11 mm 17 mm 0.2 mm 0.206 g
60 DIN988 DIN988 PS11×17×0.25 11 mm 17 mm 0.25 mm 0.258 g
61 DIN988 DIN988 PS11×17×0.3 11 mm 17 mm 0.3 mm 0.310 g
62 DIN988 DIN988 PS11×17×0.5 11 mm 17 mm 0.5 mm 0.515 g
63 DIN988 DIN988 PS11×17×1.0 11 mm 17 mm 1.0 mm 1.030 g
64 DIN988 DIN988 PS12×18×0.1 12 mm 18 mm 0.1 mm 0.111 g
65 DIN988 DIN988 PS12×18×0.15 12 mm 18 mm 0.15 mm 0.167 g
66 DIN988 DIN988 PS12×18×0.2 12 mm 18 mm 0.2 mm 0.222 g
67 DIN988 DIN988 PS12×18×0.25 12 mm 18 mm 0.25 mm 0.278 g
68 DIN988 DIN988 PS12×18×0.3 12 mm 18 mm 0.3 mm 0.332 g
69 DIN988 DIN988 PS12×18×0.5 12 mm 18 mm 0.5 mm 0.555 g
70 DIN988 DIN988 PS12×18×1.0 12 mm 18 mm 1.0 mm 1.110 g
71 DIN988 DIN988 PS13×19×0.1 13 mm 19 mm 0.1 mm 0.119 g
72 DIN988 DIN988 PS13×19×0.15 13 mm 19 mm 0.15 mm 0.179 g
73 DIN988 DIN988 PS13×19×0.2 13 mm 19 mm 0.2 mm 0.237 g
74 DIN988 DIN988 PS13×19×0.25 13 mm 19 mm 0.25 mm 0.296 g
75 DIN988 DIN988 PS13×19×0.3 13 mm 19 mm 0.3 mm 0.357 g
76 DIN988 DIN988 PS13×19×0.5 13 mm 19 mm 0.5 mm 0.595 g
77 DIN988 DIN988 PS13×19×1.0 13 mm 19 mm 1.0 mm 1.190 g
78 DIN988 DIN988 PS13×19×1.2 13 mm 19 mm 1.2 mm 1.428 g
79 DIN988 DIN988 PS14×20×0.1 14 mm 20 mm 0.1 mm 0.126 g
80 DIN988 DIN988 PS14×20×0.15 14 mm 20 mm 0.15 mm 0.189 g
81 DIN988 DIN988 PS14×20×0.2 14 mm 20 mm 0.2 mm 0.252 g
82 DIN988 DIN988 PS14×20×0.25 14 mm 20 mm 0.25 mm 0.315 g
83 DIN988 DIN988 PS14×20×0.3 14 mm 20 mm 0.3 mm 0.378 g
84 DIN988 DIN988 PS14×20×0.5 14 mm 20 mm 0.5 mm 0.630 g
85 DIN988 DIN988 PS14×20×1.0 14 mm 20 mm 1.0 mm 1.260 g
86 DIN988 DIN988 PS14×20×1.2 14 mm 20 mm 1.2 mm 1.512 g
87 DIN988 DIN988 PS15×21×0.1 15 mm 21 mm 0.1 mm 0.133 g
88 DIN988 DIN988 PS15×21×0.15 15 mm 21 mm 0.15 mm 0.199 g
89 DIN988 DIN988 PS15×21×0.2 15 mm 21 mm 0.2 mm 0.266 g
90 DIN988 DIN988 PS15×21×0.25 15 mm 21 mm 0.25 mm 0.333 g
91 DIN988 DIN988 PS15×21×0.3 15 mm 21 mm 0.3 mm 0.399 g
92 DIN988 DIN988 PS15×21×0.5 15 mm 21 mm 0.5 mm 0.665 g
93 DIN988 DIN988 PS15×21×1.0 15 mm 21 mm 1.0 mm 1.330 g
94 DIN988 DIN988 PS15×21×1.2 15 mm 21 mm 1.2 mm 1.596 g
95 DIN988 DIN988 PS15×22×0.1 15 mm 22 mm 0.1 mm 0.137 g
96 DIN988 DIN988 PS15×22×0.15 15 mm 22 mm 0.15 mm 0.205 g
97 DIN988 DIN988 PS15×22×0.2 15 mm 22 mm 0.2 mm 0.274 g
98 DIN988 DIN988 PS15×22×0.25 15 mm 22 mm 0.25 mm 0.342 g
99 DIN988 DIN988 PS15×22×0.3 15 mm 22 mm 0.3 mm 0.410 g
100 DIN988 DIN988 PS15×22×0.5 15 mm 22 mm 0.5 mm 0.683 g
