M1440 G2.2

M1440 G2.2 · Product image

Image may differ from product. See technical specifications for details.

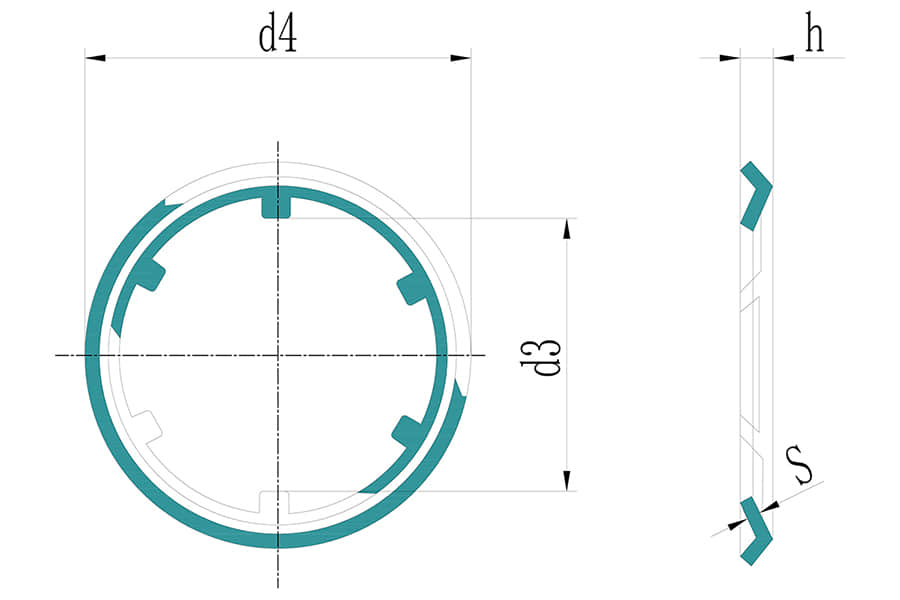

M1440 G2.2 · Technical drawing

Brand
QIBR
Alternative brand
CIRTEQ
Measurement system
Metric
Inner diameter1
2.2 mm
Inner diameter tolerance
/
Total width
6 mm
Width tolerance
/
Width1
0.6 mm
Weight
0.038 g
Outer diameter
/
Number of teeth
/
Inner diameter2
2.05 mm
Width2
/
Material
Carbon spring steel
Applications
Use for shafts without a groove,For locating and fixing,As a slide-ring for brake adjustment
Basic load rating
50 N

Inquiry for M1440 G2.2

Tell us your operating requirements and required quantity.

Description

Parts in bearing mechanical equipment

Application : All branches of industry and machine, instrument and vehicle construction.

Subseries :

Push-on Fix/Grip Rings

Specifications :

Nominal Dimension (d1) : 3mm-1000mm

Thickness of Rings (D) : 0.40mm-9.00mm

Weight  : 0.000017kg-8.130kg

M1440 G2.2 Ring Product Features and Advantages

Easy Installation: Provides greater load-bearing capacity in both radial and axial directions, effectively extending the service life of the bearing.

Reliable Fixing Performance: Effectively secures and connects different components, preventing loosening or detachment under vibration or impact conditions.

Strong Adaptability: Suitable for components of various shapes and sizes, allowing for adjustments and selections based on different application needs.

Cost-Effectiveness: Relatively low production costs, strong durability, reduced replacement frequency, and lower overall maintenance and operating costs.

High Strength: Capable of withstanding significant loads, with good tensile strength and compressive capacity.

Application: Widely used in the automotive, aerospace, machinery, construction, and other industries.

QIBR - M1440 G2.2 Ring Product Optimization

High-Performance Materials: Materials for snap rings can be replaced based on different working conditions, such as stainless steel, carbon steel, and plastic.

Surface Heat Treatment: Heat treatments such as coating, oxidation, and polishing are used to enhance wear resistance, corrosion resistance, and aesthetics.

More customization: QIBR can customize snap ring sizes and materials according to customer drawings and operational requirements.

QIBR - M1440 G2.2 Ring Product quality control

Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearings, with maximum precision reaching 0.001mm.

Hardness measurement: The hardness of the bearing surface is measured using a hardness tester, with a precision of ±0.5HRC.

Metallographic analysis: Professional metallographic microscopes are used to analyze the internal metallographic structure of metals.

Raw material control: Steel and parts are purchased from suppliers certified by ISO 14001 to ensure product stability and promote sustainable development.
