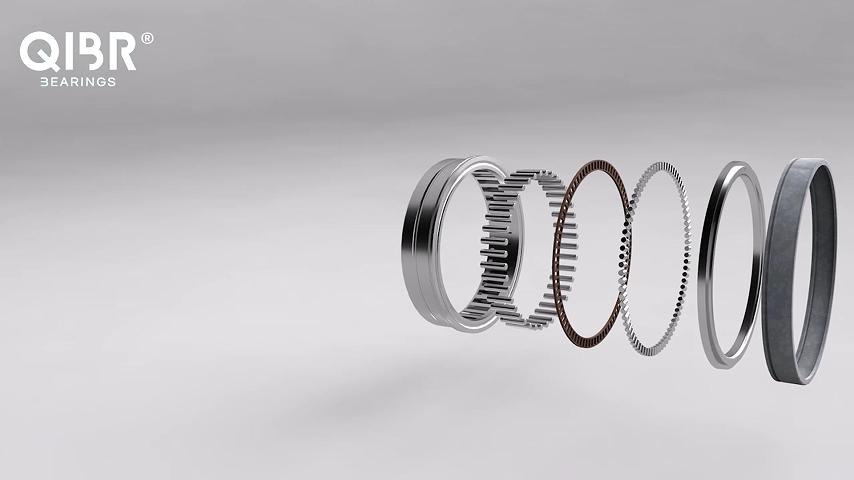

Needle Roller / Cylindrical Roller Thrust Bearings

Composed of radial needle roller bearings and cylindrical roller thrust bearings, these bearings are designed without an inner ring but can be used in combination with an inner ring when the shaft cannot be hardened and ground. They can only support axial loads and locate the shaft axially in one direction. For short shafts and when the length change due to thermal expansion is relatively small, they can be mounted in a back-to-back configuration.

Specifications

Standard: GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh
Material: GCr15
Brand: QIBR/OEM/Neutral
Applications: Automotive Industry, Aerospace Industry, Industrial Machinery, Construction and Agricultural Equipment, Household Appliances, Marine Industry, Medical Equipment, etc

QIBR Model Selection

QIBR Model Selection
No.	Product model	Inner envelope circle	Outer diameter	Weight	Limiting speed	Total width
1	NKXR 15	15 mm	24 mm	0.042 kg	8500 rpm	23 mm
2	NKXR 15 Z	15 mm	24 mm	0.045 kg	8500 rpm	23 mm
3	NKXR 17	17 mm	26 mm	0.05 kg	8500 rpm	25 mm
4	NKXR 17 Z	17 mm	26 mm	0.053 kg	8500 rpm	25 mm
5	NKXR 20	20 mm	30 mm	0.08 kg	7500 rpm	30 mm
6	NKXR 20 Z	20 mm	30 mm	0.084 kg	7500 rpm	30 mm
7	NKXR 25	25 mm	37 mm	0.12 kg	6300 rpm	30 mm
8	NKXR 25 Z	25 mm	37 mm	0.13 kg	6300 rpm	30 mm
9	NKXR 30	30 mm	42 mm	0.14 kg	6000 rpm	30 mm
10	NKXR 30 Z	30 mm	42 mm	0.14 kg	6000 rpm	30 mm
11	NKXR 35	35 mm	47 mm	0.16 kg	5600 rpm	30 mm
12	NKXR 35 Z	35 mm	47 mm	0.17 kg	5600 rpm	30 mm
13	NKXR 40	40 mm	52 mm	0.2 kg	5000 rpm	32 mm
14	NKXR 40 Z	40 mm	52 mm	0.21 kg	5000 rpm	32 mm
15	NKXR 45	45 mm	58 mm	0.24 kg	4500 rpm	32 mm
16	NKXR 45 Z	45 mm	58 mm	0.26 kg	4500 rpm	32 mm
17	NKXR 50	50 mm	62 mm	0.27 kg	4300 rpm	35 mm
18	NKXR 50 Z	50 mm	62 mm	0.29 kg	4300 rpm	35 mm

Features and advantages of QIBR needle roller and thrust cylindrical roller combination bearings

QIBR needle roller and thrust cylindrical roller combination bearings solve multiple key problems in various fields, which are mainly reflected in the following aspects:

1. Compound load bearing capacity

This combination bearing can bear radial and axial loads at the same time, and is suitable for complex environments where two loads act at the same time during work, especially applications that need to bear torque and radial force.

2. Save space and simplify design

Since this combination bearing bears radial and axial loads at the same time, it is usually not necessary to use multiple bearings in the design to share different types of loads, thereby saving installation space.

In some compact designs, the use of this combination bearing can greatly simplify the assembly process, reduce the number of parts, and reduce manufacturing and maintenance costs.

3. Strong adaptability

The needle roller and thrust cylindrical roller combination bearing can adapt to complex working environments, can work normally under high loads, vibrations, shocks, etc., and adapt to load changes in different directions.

The performance improvement and solutions of QIBR needle roller and thrust cylindrical roller combination bearing

1. Improved materials

Selection of high-performance materials: Using materials with higher hardness, wear resistance and corrosion resistance can significantly improve the durability and stability of bearings.

2. Optimized cage design

Cage structure optimization: Optimize the cage structure design to achieve better needle roller arrangement and uniform load distribution. Improving the cage structure can reduce the mutual collision of needle rollers and improve operating stability and efficiency.

3. Improved lubrication performance

High-efficiency lubricating materials: Use grease or lubricating oil that is more suitable for high temperature and high pressure environments to ensure that the lubricating oil can maintain stable performance under long-term work, thereby reducing bearing friction and improving durability.

4. Improved precision

Precision machining technology: By improving manufacturing accuracy and reducing the error between bearing components, ensure that the contact between needle rollers and cages is more uniform and stable. This can not only improve the performance of the bearing, but also extend the service life and reduce noise and vibration.

Main application areas of QIBR needle roller and thrust cylindrical roller combination bearings
