GE200DO

QIBR - GE200DO Joint Bearing Advantages and Applications

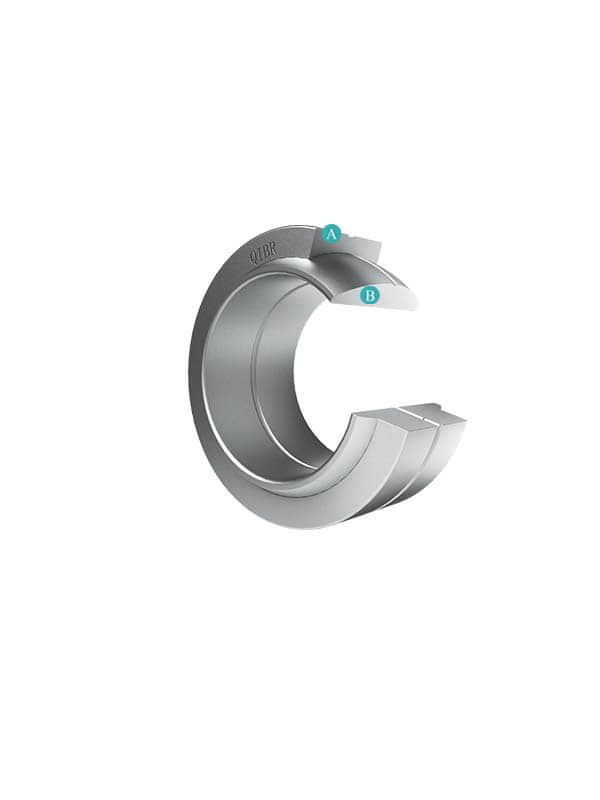

GE200DO Joint Bearing, simple structure, self-aligning ability, Inner diameter is 200 mm, Outer diameter is 290 mm, Total width is 130 mm, Width of outer ring is 100 mm, Weight is 28 kg, suitable for excavators, crushers and cranes, etc., and is the most widely used bearing in working conditions that require high self-aligning ability.

QIBR - GE200DO Joint Bearing Characteristics

GE200DO Joint Bearing, improve efficiency and prolong life. GE200DO Joint Bearing, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high efficiency requirements.

GE200DO Joint Bearings Features and Advantages

Reliability: High load capacity and durability reduce failures and downtime.

Structural Design: The inner and outer rings feature spherical and inner spherical surfaces, allowing rotation and swinging at any angle.

Load Capacity: Capable of withstanding significant radial and axial loads, suitable for high-stress and heavy-duty applications.

Self-Aligning Function: Equipped with self-aligning characteristics, it can automatically adjust during installation errors or movement, ensuring smooth operation.

Application: Widely used in fields such as engineering hydraulic cylinders, forging machine tools, construction machinery, automation equipment, automotive shock absorbers, and hydraulic machinery.

QIBR - GE200DO Joint Bearings Optimization

High-performance materials: Bearing materials can be replaced based on different working conditions, such as FRP, bearing steel, stainless steel, and other materials.

Surface Treatment: The bearing surface can be treated according to customer requirements, including phosphating, galvanizing, chrome plating, and lining, padding, or spraying on the sliding surfaces.

More customization: QIBR can design and optimize bearings based on customer usage conditions and needs.

QIBR - GE200DO Joint Bearings Quality Control

Dimension measurement: Various professional high-precision instruments are used to measure multiple dimensions of the bearing, with the highest precision reaching 0.001mm.

Rotational Accuracy: A dial gauge measures small surface defects or deviations, with a measurement accuracy of up to 0.001mm.

Hardness measurement: Use a hardness tester to measure the surface hardness of the guide rail, with a measurement accuracy of ±0.5HRC.

Metallographic Analysis: The internal metallographic structure of the metal is analyzed using a professional metallographic microscope.

Noise Monitoring: Vibration data is obtained by monitoring the vibrations during operation with a vibration meter.

Geometric tolerance: Use a profiler to measure the geometry and relative position of the guide rail.

Raw material control: Procurement of steel and parts from ISO 14001 certified suppliers ensures product stability while promoting sustainable development.
