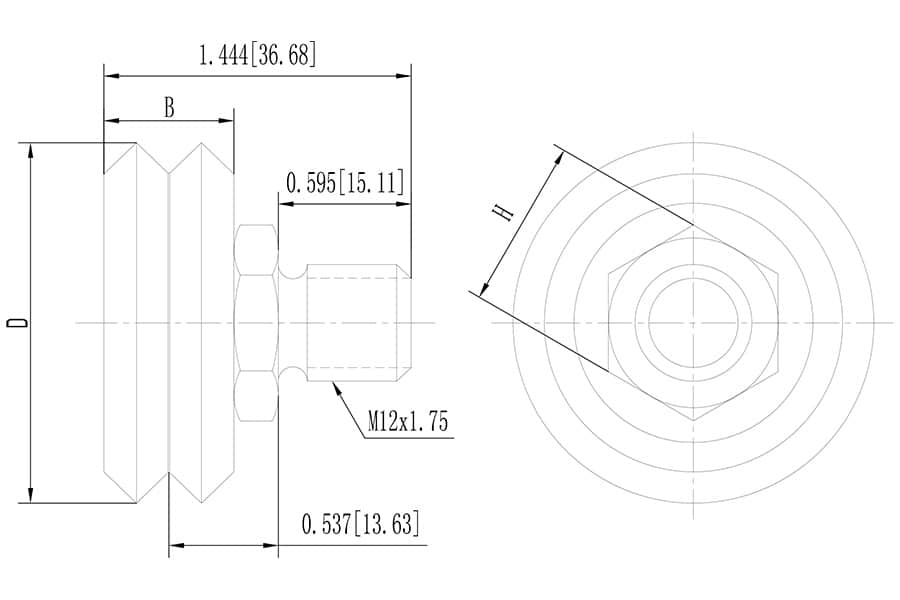

SWSC3SSXA
- Brand
- QIBR
- Alternative brand
- BWC
- Rolling element type
- Ball
- Measurement system
- Imperial
- Bolt size
- M12x1.75 mm
- Outer diameter
- 1.803 inch
- Total width
- 1.444 inch
- Width of outer ring
- 0.625 inch
- Wrench size
- 0.750 inch
- Length thread
- 0.595 inch
- Width1
- 0.537 inch
- Width2
- /
- Shaft diameter
- /
- Weight
- 166 g
- Material
- 303 stainless steel
- Basic static load rating (axial)
- 382 lbf
- Basic static load rating (radial)
- 1326 lbf
- Temperature
- -22 to +212 °F
- Seal type
- Closed type
- Load direction
- Axial and radial
Tell us your operating requirements and required quantity.
Description
Studded Wheels are specially designed for enhanced traction and stability, featuring embedded studs that improve grip on slippery or uneven surfaces. They provide superior performance in challenging conditions, increased durability, and reliable handling.
QIBR - SWSC3SSXA Guide Wheels Advantages and Applications
SWSC3SSXA Guide Wheels, compact structure, strong wear resistance, strong load-bearing capacity, Outer diameter is 1.803 inch, Width2 is /, Weight is 166 g, suitable for automated production lines, engineering machinery and precision instruments, etc., and is the most widely used in working conditions with high load-bearing capacity requirements.
QIBR - SWSC3SSXA Guide Wheels Characteristics
SWSC3SSXA Guide Wheels, strong adaptability, improved efficiency, long life. SWSC3SSXA Guide Wheels, can withstand radial load and axial load, suitable for mechanical equipment with high safety requirements.
Features & benefits
Studded wheels are a common mechanical component characterized by being directly fixed to equipment or support with bolts, offering easy and stable installation. These rollers are often used in situations where frequent adjustments or replacements are needed and are widely applied in conveyor systems, lifting equipment, and automation machinery.
The outer ring provides support and guidance, ensuring the balls roll on the correct path.
