SWAE2SS300

SWAE2SS300 · Product image

Image may differ from product. See technical specifications for details.

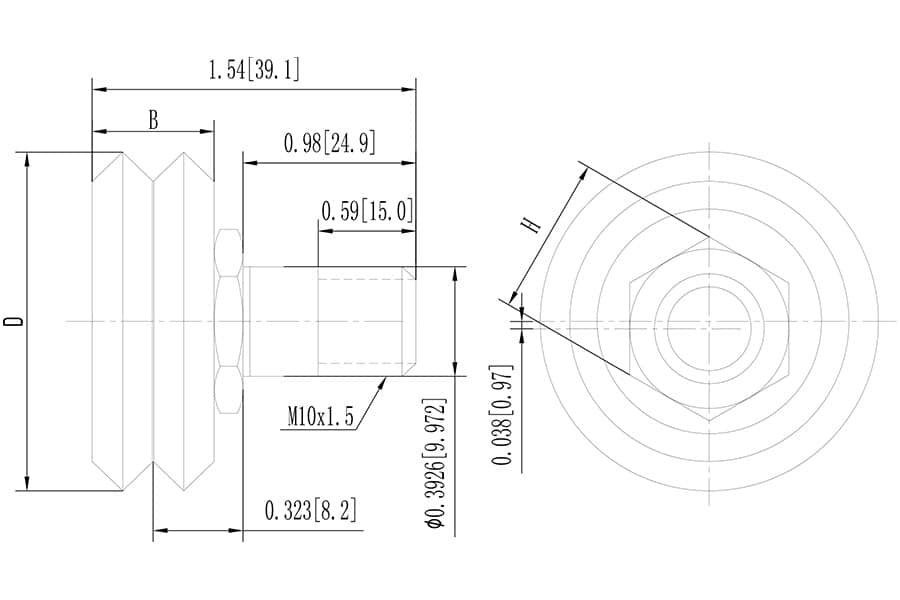

SWAE2SS300 · Technical drawing

Brand
QIBR
Alternative brand
BWC
Rolling element type
Ball
Measurement system
Imperial
Bolt size
M10x1.5 mm
Outer diameter
1.210 inch
Total width
1.540 inch
Width of outer ring
0.438 inch
Wrench size
0.551 inch
Length thread
0.590 inch
Width1
0.980 inch
Width2
0.323 inch
Shaft diameter
0.3926 inch
Weight
75 g
Material
416 stainless steel
Basic static load rating (axial)
/
Basic static load rating (radial)
/
Temperature
/
Seal type
Closed type
Load direction
Axial and radial

Inquiry for SWAE2SS300

Tell us your operating requirements and required quantity.

Description

Studded Wheels are specially designed for enhanced traction and stability, featuring embedded studs that improve grip on slippery or uneven surfaces. They provide superior performance in challenging conditions, increased durability, and reliable handling.

QIBR - SWAE2SS300 Guide Wheels Advantages and Applications

SWAE2SS300 Guide Wheels, compact structure, strong wear resistance, strong load-bearing capacity, Outer diameter is 1.210 inch, Width2 is 0.323 inch, Weight is 75 g, suitable for automated production lines, engineering machinery and precision instruments, etc., and is the most widely used in working conditions with high load-bearing capacity requirements.

QIBR - SWAE2SS300 Guide Wheels Characteristics

SWAE2SS300 Guide Wheels, strong adaptability, improved efficiency, long life. SWAE2SS300 Guide Wheels, can withstand radial load and axial load, suitable for mechanical equipment with high safety requirements.
