SWAE1SS300

SWAE1SS300 · Product image

Image may differ from product. See technical specifications for details.

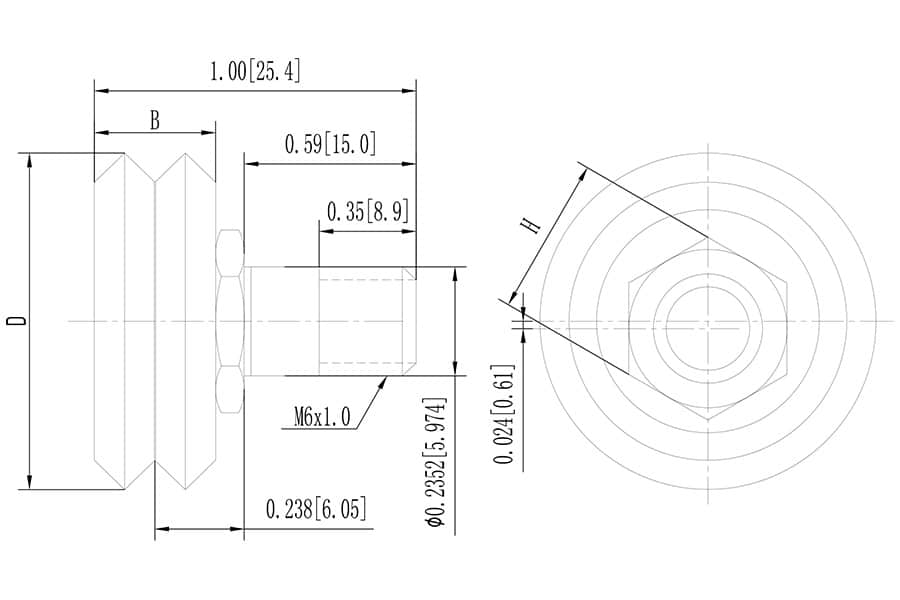

SWAE1SS300 · Technical drawing

Brand
QIBR
Alternative brand
BWC
Rolling element type
Ball
Measurement system
Imperial
Bolt size
M6x1.0 mm
Outer diameter
0.771 inch
Total width
1.000 inch
Width of outer ring
0.310 inch
Wrench size
0.472 inch
Length thread
0.350 inch
Width1
0.590 inch
Width2
0.238 inch
Shaft diameter
0.2352 inch
Weight
20 g
Material
416 stainless steel
Basic static load rating (axial)
/
Basic static load rating (radial)
/
Temperature
/
Seal type
Closed type
Load direction
Axial and radial

Inquiry for SWAE1SS300

Tell us your operating requirements and required quantity.

Description

Studded Wheels are specially designed for enhanced traction and stability, featuring embedded studs that improve grip on slippery or uneven surfaces. They provide superior performance in challenging conditions, increased durability, and reliable handling.

QIBR - SWAE1SS300 Guide Wheels Advantages and Applications

SWAE1SS300 Guide Wheels, compact structure, strong wear resistance, strong load-bearing capacity, Outer diameter is 0.771 inch, Width2 is 0.238 inch, Weight is 20 g, suitable for automated production lines, engineering machinery and precision instruments, etc., and is the most widely used in working conditions with high load-bearing capacity requirements.

QIBR - SWAE1SS300 Guide Wheels Characteristics

SWAE1SS300 Guide Wheels, strong adaptability, improved efficiency, long life. SWAE1SS300 Guide Wheels, can withstand radial load and axial load, suitable for mechanical equipment with high safety requirements.
