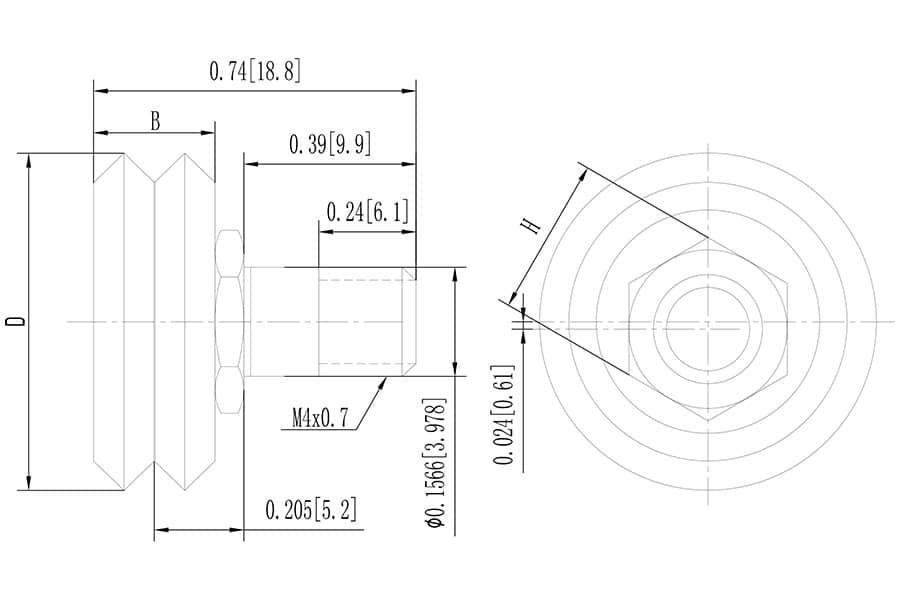

SWAE0X
- Brand
- QIBR
- Alternative brand
- BWC
- Rolling element type
- Ball
- Measurement system
- Imperial
- Bolt size
- M4x0.7 mm
- Outer diameter
- 0.584 inch
- Total width
- 0.740 inch
- Width of outer ring
- 0.250 inch
- Wrench size
- 0.433 inch
- Length thread
- 0.240 inch
- Width1
- 0.390 inch
- Width2
- 0.205 inch
- Shaft diameter
- 0.1566 inch
- Weight
- 9 g
- Material
- 416 stainless steel
- Basic static load rating (axial)
- /
- Basic static load rating (radial)
- /
- Temperature
- /
- Seal type
- Closed type
- Load direction
- Axial and radial
Tell us your operating requirements and required quantity.
Description
Studded Wheels are specially designed for enhanced traction and stability, featuring embedded studs that improve grip on slippery or uneven surfaces. They provide superior performance in challenging conditions, increased durability, and reliable handling.
QIBR - SWAE0X Guide Wheels Advantages and Applications
SWAE0X Guide Wheels, compact structure, strong wear resistance, strong load-bearing capacity, Outer diameter is 0.584 inch, Width2 is 0.205 inch, Weight is 9 g, suitable for automated production lines, engineering machinery and precision instruments, etc., and is the most widely used in working conditions with high load-bearing capacity requirements.
QIBR - SWAE0X Guide Wheels Characteristics
SWAE0X Guide Wheels, strong adaptability, improved efficiency, long life. SWAE0X Guide Wheels, can withstand radial load and axial load, suitable for mechanical equipment with high safety requirements.
Features & benefits
Studded wheels are a common mechanical component characterized by being directly fixed to equipment or support with bolts, offering easy and stable installation. These rollers are often used in situations where frequent adjustments or replacements are needed and are widely applied in conveyor systems, lifting equipment, and automation machinery.
The outer ring provides support and guidance, ensuring the balls roll on the correct path.
