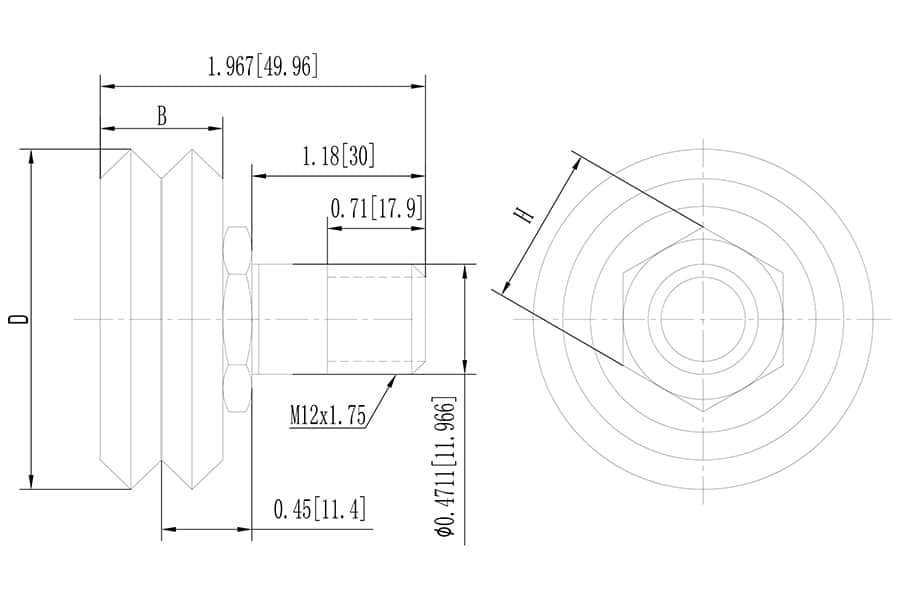

SWACWD3SSX
- Brand
- QIBR
- Alternative brand
- BWC
- Rolling element type
- Ball
- Measurement system
- Imperial
- Bolt size
- M12x1.75 mm
- Outer diameter
- 1.803 inch
- Total width
- 1.967 inch
- Width of outer ring
- 0.625 inch
- Wrench size
- 0.748 inch
- Length thread
- 0.710 inch
- Width1
- 1.180 inch
- Width2
- 0.450 inch
- Shaft diameter
- 0.4711 inch
- Weight
- 193 g
- Material
- 416 stainless steel
- Basic static load rating (axial)
- /
- Basic static load rating (radial)
- /
- Temperature
- /
- Seal type
- Closed type
- Load direction
- Axial and radial
Tell us your operating requirements and required quantity.
Description
Studded Wheels are specially designed for enhanced traction and stability, featuring embedded studs that improve grip on slippery or uneven surfaces. They provide superior performance in challenging conditions, increased durability, and reliable handling.
QIBR - SWACWD3SSX Guide Wheels Advantages and Applications
SWACWD3SSX Guide Wheels, compact structure, strong wear resistance, strong load-bearing capacity, Outer diameter is 1.803 inch, Width2 is 0.450 inch, Weight is 193 g, suitable for automated production lines, engineering machinery and precision instruments, etc., and is the most widely used in working conditions with high load-bearing capacity requirements.
QIBR - SWACWD3SSX Guide Wheels Characteristics
SWACWD3SSX Guide Wheels, strong adaptability, improved efficiency, long life. SWACWD3SSX Guide Wheels, can withstand radial load and axial load, suitable for mechanical equipment with high safety requirements.
Features & benefits
Studded wheels are a common mechanical component characterized by being directly fixed to equipment or support with bolts, offering easy and stable installation. These rollers are often used in situations where frequent adjustments or replacements are needed and are widely applied in conveyor systems, lifting equipment, and automation machinery.
The outer ring provides support and guidance, ensuring the balls roll on the correct path.
