W 61803 2Z

W 61803 2Z · Product image

Image may differ from product. See technical specifications for details.

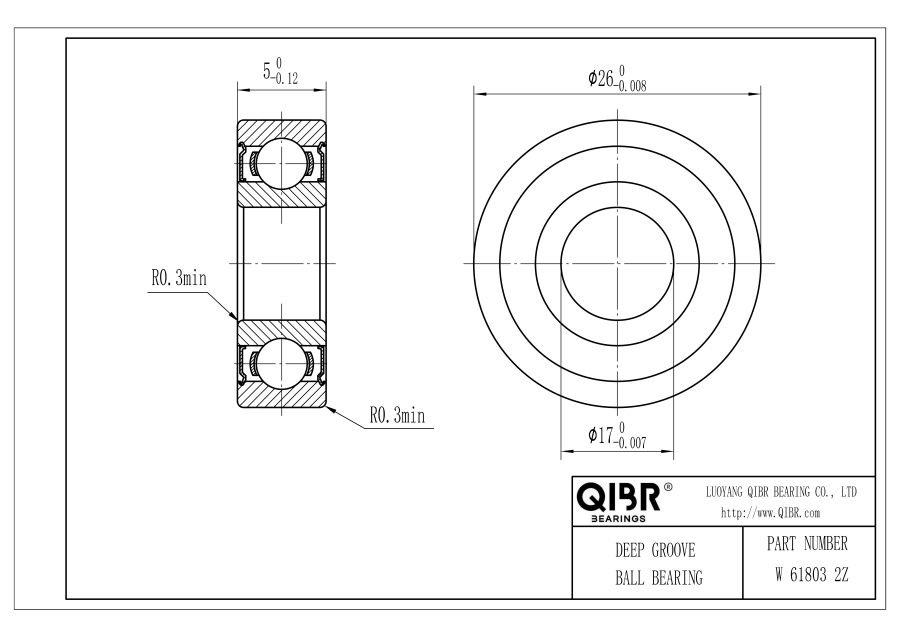

W 61803 2Z · Technical drawing

Brand
QIBR
Alternative brand
SKF
Rolling element type
Ball
Measurement system
Metric
Precision level
P6(ABEC-3)
Outer diameter
26 mm
Inner diameter
17 mm
Total width
5 mm
Outer diameter of inner ring
18.8 mm
Inner diameter of outer ring
24.2 mm
Chamfer dimension
0.3 mm
Weight
7.6 g
Load direction
Radial
Vibration grade
ZV3
Temperature
-20℃ to +120℃
Ring material
AISI 304
Rolling element material
AISI 304
Reference speed
56000 rpm
Limiting speed
28000 rpm
Basic dynamic load rating
1.78 kN
Basic static load rating
1.27 kN
Fatigue load limit
0.054 kN
Seal type
Closed type

Inquiry for W 61803 2Z

Tell us your operating requirements and required quantity.

Description

Stainless steel deep groove ball bearings are a type of bearing designed for applications where corrosion resistance and hygiene are essential. They are constructed using stainless steel for both the inner and outer rings, as well as the balls and often the cage.

Here's a brief description of their features and applications:

Corrosion Resistance: Stainless steel bearings are highly resistant to corrosion from moisture, chemicals, and other environmental factors. This makes them ideal for use in industries such as food and beverage, medical equipment, marine, and outdoor applications where exposure to harsh conditions is common.

Hygiene: Stainless steel is non-reactive and easy to clean, making these bearings suitable for applications requiring strict hygiene standards, such as food processing and pharmaceutical manufacturing.

High Temperature Resistance: Stainless steel bearings can withstand higher temperatures compared to standard bearings, making them suitable for applications where heat resistance is required.

Low Maintenance: Due to their corrosion resistance, stainless steel bearings require minimal maintenance, resulting in reduced downtime and lower overall operating costs.

Versatility: Stainless steel deep groove ball bearings are available in various sizes and configurations, allowing them to be used in a wide range of applications, including pumps, motors, conveyors, and agricultural equipment.

QIBR - W 61803 2Z Deep Groove Ball Bearing Advantages and Applications

W 61803 2Z Deep Groove Ball Bearing, high quality performance, high speed, Inner diameter is 17 mm，Outer diameter is 26 mm，Total width is 5 mm，Weight is 7.6 g, suitable for cranes, gearboxes, spinning machines and generators, etc., and is the most widely used bearing in working conditions with high performance requirements.

QIBR - W 61803 2Z Deep Groove Ball Bearing Characteristics

W 61803 2Z Deep Groove Ball Bearing, low manufacturing cost and long life. W 61803 2Z Deep Groove Ball Bearing, can bear radial load and certain axial load at the same time, suitable for mechanical equipment with high stability requirements.

W 61803 2Z Deep Groove Ball Bearing Product Features and Advantages

High Load Capacity: Capable of simultaneously bearing large radial and axial loads, suitable for various load conditions.

Simple Structure: Low manufacturing cost, high cost-effectiveness, simple design, easy to manufacture and install.

Self-Aligning Ability: Possesses a certain degree of self-aligning capability, automatically adjusting the relative position of the inner and outer rings, reducing precision requirements during installation.

Smooth Operation: Low friction coefficient, resulting in low noise during operation, suitable for high-speed applications.

Application: Widely used in electric motors, automotive industry, household appliances, industrial machinery, agricultural machinery, wind turbines, railway vehicles, construction machinery, and more.

QIBR - W 61803 2Z Deep Groove Ball Bearing Optimization

Optional Types: Can be supplied with CN or C3 group clearance, or customized clearance based on customer requirements.

Grease Replacement: Lubricants can be chosen based on bearing operational needs, such as SKF LGED 2, Mobil SHC Polyrex 102 EM, etc.

Cage Types: Cage type can be selected according to bearing operating conditions, such as two-piece riveted steel cage, one-piece stainless steel crown cage, one-piece polymer crown cage, machined brass cage, etc.

Further Customization: QIBR can design and optimize bearings according to customer drawings and operational requirements.

QIBR - W 61803 2Z Deep Groove Ball Bearing Quality Control

Dimension measurement: Multiple high-precision instruments are used to measure various dimensions of the bearing, with an accuracy of up to 0.001mm.

Rotation accuracy: A dial gauge measures minor surface flaws or deviations, with measurement accuracy reaching 0.001mm.

Hardness measurement: The surface hardness of the bearing is measured using a hardness tester, with an accuracy of ±0.5HRC.

Metallographic analysis: A professional metallographic microscope is used to analyze the internal metallographic structure of the metal.

Geometric tolerance: A profilometer is used to measure the geometric shape and relative position of the bearing.

Noise monitoring: A vibration meter monitors vibrations during operation, providing noise data with a noise vibration level not lower than Z3V3.

Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
