7034ACD/GDP4AL

QIBR - 7034ACD/GDP4AL Angular Contact Ball Bearing Advantages and Applications

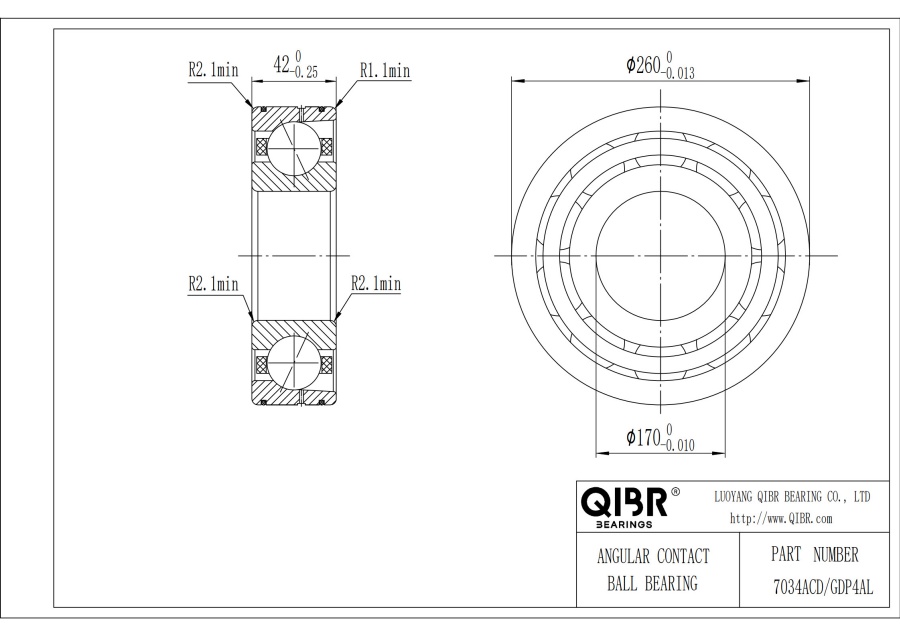

7034ACD/GDP4AL Angular Contact Ball Bearing, low noise, high speed capability,Inner diameter is 170 mm，Outer diameter is 260 mm，Total width is 42 mm，Weight is 7 kg， suitable for small car front wheels, differential pinion shafts, booster pumps and drilling platforms, etc., and is the most widely used bearing in conditions requiring high speed.

QIBR - 7034ACD/GDP4AL Angular Contact Ball Bearing Characteristics

7034ACD/GDP4AL Angular Contact Ball Bearing, stable performance, not easy to damage, simple maintenance. 7034ACD/GDP4AL Angular Contact Ball Bearing, can bear radial load and certain axial load at the same time, suitable for mechanical equipment with high performance requirements.

7034ACD/GDP4AL Angular Contact Ball Bearing Product Features and Advantages

High load capacity: It can withstand large radial and axial forces, and adopts high-strength steel and precision processing technology, with strong load-bearing capacity.

Good structural rigidity: The contact angle of the inner and outer rings is large, the structural rigidity is good, and stable operation is maintained under high load.

High positioning accuracy: The inner and outer rings have high matching accuracy, which can provide accurate positioning and centering functions.

High-speed operation performance: It has a low friction coefficient and high speed capability, suitable for high-speed operation applications.

Application: It has a wide range of applications in machine tool manufacturing, automotive industry, aerospace, motors and generators, robotics, medical equipment, automation equipment and other fields.

QIBR - 7034ACD/GDP4AL Angular Contact Ball Bearing Optimization

Optional Contact Angles: Depending on the operating conditions, different contact angles can be selected, such as 15°, 18°, 25°, or 40°.

High-Performance Materials: The bearing materials can be replaced according to different operating conditions, with options like SKF III, ZGcr15, high-purity bearing steel, ceramics, stainless steel, and other materials.

Grease Replacement: Select the lubrication based on the bearing's working requirements, such as LUBCON L252, Multemp SRL, or KLUBER ISOFLEX NBU 15.

Process parameter optimization: Optimize the processing parameters, such as grinding speed, feed speed, cutting depth, etc. to improve processing efficiency and quality.

More customization: QIBR can design and optimize the bearing according to customer requirements for drawings and bearing working conditions.

QIBR - 7034ACD/GDP4AL Angular contact ball bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with a maximum accuracy of 0.001mm.

Rotation accuracy: Use a micrometer to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.001mm.

Hardness measurement: Use a hardness tester to measure the surface hardness of the bearing, with a measurement accuracy of up to ±0.5HRC.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a profiler to measure the bearing geometry and relative position.

Noise monitoring: Vibration during operation is monitored by a vibration meter to obtain noise data.

Raw material control: Steel and parts are purchased from suppliers certified by ISO 14001 to ensure product stability and promote sustainable development.
