I. Pre-Disassembly Preparations
1. Safety First
Wear protective gloves and safety goggles
Ensure proper ventilation in the work area
2. Workspace Organization
Maintain a clean and organized disassembly environment
Clear obstacles from the work area
3. Tool Preparation
Select appropriate disassembly tools based on bearing type and installation method
Prepare auxiliary materials (penetrating oil, cleaning agents, etc.)
4. Position Marking
Record the original position and orientation (especially for angular contact bearings)
Use marking paint or tags for identification
II. Common Disassembly Methods

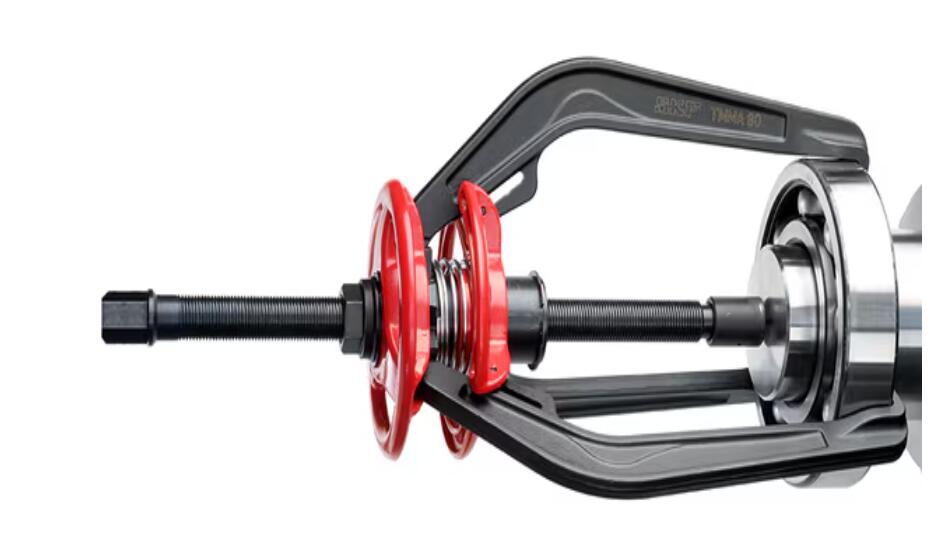

1. Mechanical Puller Method
Applications: Small shaft diameters with light interference fits
Tools:
Two-jaw or three-jaw bearing pullers
Hydraulic pullers (for larger bearings)
Procedure:
Securely attach puller jaws to the ball bearing inner ring
Align puller center with shaft axis
Apply steady, even pulling force
For stubborn bearings: Apply controlled heat to inner ring (≤120°C)
Precautions:
Never grip the outer ring - risk of ball bearing damage
Use penetrating oil for tight fits
2. Hydraulic Disassembly Method
Applications: Large ball bearings or heavy interference fits
Equipment:
Hydraulic pump system
Specialized disassembly sleeves
Advantages:
Even force distribution
Minimized shaft/bearing damage
3. Thermal Disassembly Method
Principle: Utilize thermal expansion/contraction
Procedure:
1. Heat inner ring with induction heater or heat gun (80-120°C range)
2. Quickly remove with puller
Prohibited:
Direct flame heating (causes material annealing)
4. Impact Method (Last Resort)
Applications: Non-critical small bearings only
Proper Technique:
Use copper or soft metal drifts
Apply even impacts to inner ring
Never strike outer ring or rolling elements
III. Special Case Handling
1. Rusted/Seized Bearings:
Pre-treat with penetrating oil (e.g., WD-40)
Allow several hours for penetration
Combine with thermal method
2. Plastic Cage Bearings:
Temperature limit: 80°C max
Prefer mechanical puller methods
3. Miniature Bearings:
Use precision micro-pullers
Exercise extreme care
IV. Post-Disassembly Inspection
1. Component Examination:
Check shaft and housing for wear
Assess bearing failure patterns (for predictive maintenance)
2. Surface Preparation:
Clean mating surfaces
Remove burrs and residues
V. Common Mistakes and Prevention
Error Consequence Correct Practice
Striking outer ring Damages rolling elements/cage Always apply force to inner ring
Improper puller selection Tool slippage/injury Use size-matched professional tools
Excessive heating Material annealing Monitor with thermometer (stay within limits)
VI. Professional Recommendations
1. Expert Consultation: Recommended for precision/valuable equipment
2. Documentation: Preserve manufacturer's disassembly instructions
3. Design Considerations: Incorporate disassembly accessibility during design phase
4. Maintenance Benefits: Regular maintenance significantly reduces disassembly difficulty
Mastering these professionalball bearing disassembly techniques will improve work efficiency, minimize potential equipment damage and extend machinery service life.
